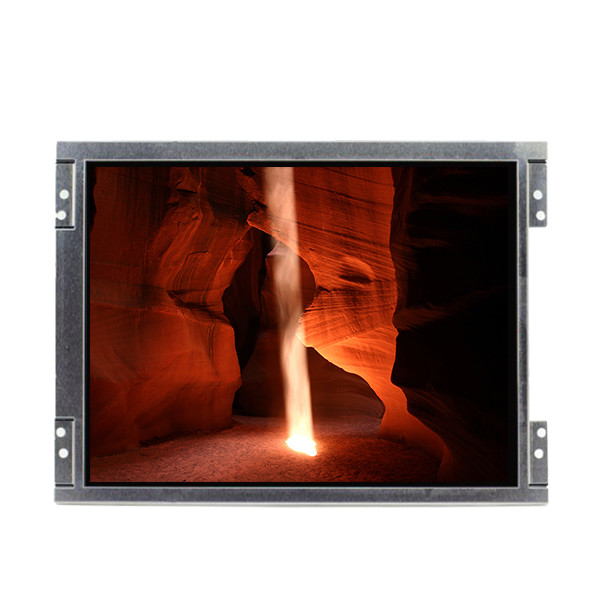

TCG084SVLQEPNN-AN40 8.4 inch 800*600 LCD Display Panel For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG084SVLQEPNN-AN40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TCG084SVLQEPNN-AN40 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 119PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 170.4(W)×127.8(H) Mm |
| Luminance: | 1200 Cd/m² (Typ.) | Contrast Ratio: | 750 : 1 (Typ.) (TM) |
| Designed For: | Industrial、Outdoor High Brightness | Power Supply: | 3.3V (Typ.) |
Product Description
TCG084SVLQEPNN-AN40 8.4 inch 800*600 LCD Display Panel For Industrial
TCG084SVLQEPNN-AN40 LCD Panel Product details :
| Brand | Kyocera |
| Model P/N | TCG084SVLQEPNN-AN40 |
| Diagonal Size | 8.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 170.4(W)×127.8(H) mm |
| Bezel Opening | 173.9(W)×131.9(H) mm |
| Outline(mm) | 199.5 × 149× 12 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 1200 cd/m² (Typ.) |
| Contrast Ratio | 750 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 18/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AWV, Normally Black, Transmissive |
| Color Depth | 16.2M 51%NTSC |
| Backlight | 6S4PWLED, 70K hours, With LED Driver |
| Mass | 365g (Typ.) |
| Used for | Industrial,Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| TCG084SVLQEPNN-AN40 8.4 inch 800*600 LCD Display Panel For Industrial | |
