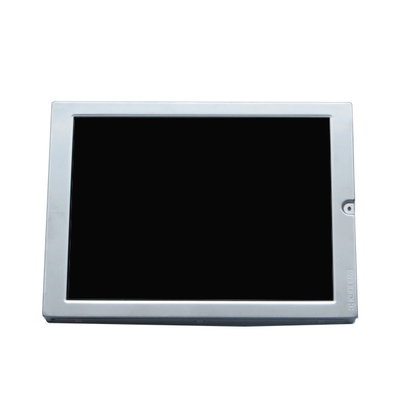

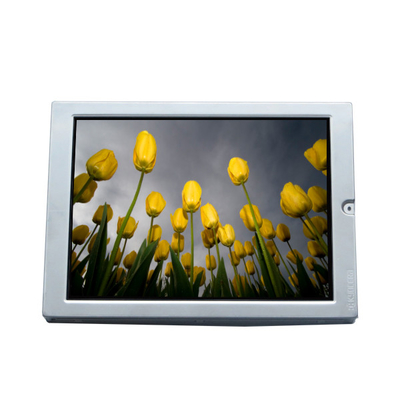

TCG075VGLDH-G20 7.5 inch 640*480 Industrial LCD Screen Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG075VGLDH-G20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TCG075VGLDH-G20 | Diagonal Size: | 7.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×480, VGA 107PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 151.68(W)×113.76(H) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Designed For: | Industrial | Power Supply: | 3.3V (Typ.) |
Product Description
TCG075VGLDH-G20 7.5 inch 640*480 Industrial LCD Screen Display Module
TCG075VGLDH-G20 LCD Panel Product details :
| Brand | Kyocera |
| Model P/N | TCG075VGLDH-G20 |
| Diagonal Size | 7.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 107PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 151.68(W)×113.76(H) mm |
| Bezel Opening | 153.7(W)×115.8(H) mm |
| Outline Size | 173(W)×133(H)×6.85(D) mm |
| Brightness | 250 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | - |
| Display Colors | 262K 52%NTSC |
| Frequency | 60Hz |
| Weight | TBD |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Lamp Type | WLED , 40K hours , With LED Driver |
| Touch Screen | Without |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| TCG075VGLDH-G20 7.5 inch 640*480 Industrial LCD Screen Display Module | |
TCG075VGLDH-G20 LCD Panel Friendly Reminder:
Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.
Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.
Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.
TCG075VGLDH-G20 LCD Panel Shipping and Package :
TCG075VGLDH-G20 LCD Panel Shipping and Delivery Information:
Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.
Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.
Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.
Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.
TCG075VGLDH-G20 LCD Panel Return Policy:
One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.
Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.
Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.
Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.
Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.
Thank you for your cooperation. We wish you a pleasant shopping experience!
TCG075VGLDH-G20 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can I pay my order of TCG075VGLDH-G20 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of TCG075VGLDH-G20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of TCG075VGLDH-G20 ?
A: we will give you tracking number then you can trace your order from website.
