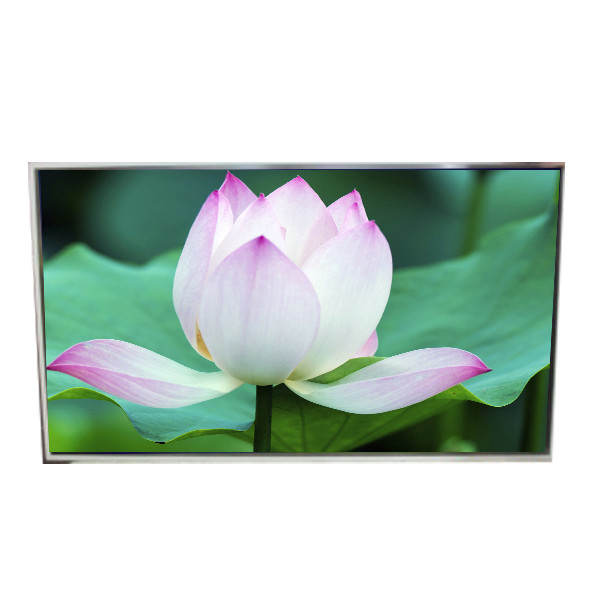

49.0 Inch 1920*1080 51 Pins 60Hz LCD Display LD490DUN-THA1
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LD490DUN-THA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LD490DUN-THA1 | Diagonal Size: | 49" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 45PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1073.78(W)×604(H) Mm |
| Application: | Video Wall | Frequency: | 60Hz |
Product Description
49.0 Inch 1920*1080 51 Pins 60Hz LCD Display LD490DUN-THA1
LD490DUN-THA1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LD490DUN-THA1 |
| Diagonal Size | 49" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 45PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1073.78(W)×604(H) mm |
| Bezel Opening | 1074.1(W)×604.3(H) mm |
| Outline Size | 1077.6(W)×607.8(H)×55.6(D) mm |
| Surface | Antiglare, Antireflection |
| Brightness | 700 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Display Colors | 16.7M/1.07B 72%NTSC |
| Lamp Type | WLED, 60K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Videowall Seam | 3.8 mm (active to active seam) |
| Application | Video Wall |
| Signal Interface | LVDS (2 ch, 8/10-bit), 51 pinsConnector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 49.0 Inch 1920*1080 51 Pins 60Hz LCD Display LD490DUN-THA1 | |
LD490DUN-THA1 LCD Panel Friendly Reminder:
Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.
Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.
Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.
LD490DUN-THA1 LCD Panel Shipping and Package :
LD490DUN-THA1 LCD Panel Shipping and Delivery Information:
Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.
Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.
Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.
Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.
LD490DUN-THA1 LCD Panel Return Policy:
One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.
Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.
Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.
Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.
Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.
Thank you for your cooperation. We wish you a pleasant shopping experience!
LD490DUN-THA1 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LD490DUN-THA1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of LD490DUN-THA1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of LD490DUN-THA1 ?
A: Of course!sample order is welcome !
Q: How to make payment of LD490DUN-THA1 ?
A: We accept T/T , Paypal , western union .
Want to Know more details about this product
