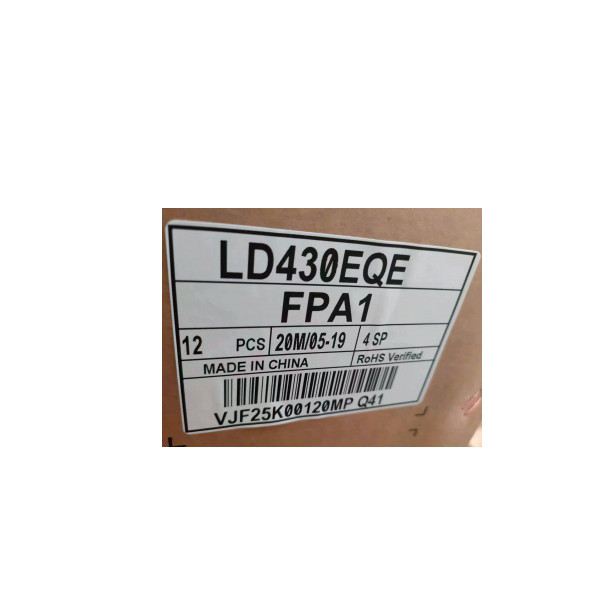

LD430EQE-FPA1 43.0 inch 60Hz Lcd Panel

Brand Name:	LG
Model Number:	LD430EQE-FPA1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LD430EQE-FPA1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

3840(RGB)×2160, UHD 103PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

941.184(W)×529.416(H) Mm

Display Colors:

1.07B 99%sRGB

Designed For:

Digital Signage、Outdoor High Brightness

Supply Ability:

100000 Unit/Units per Month

Product Description

LD430EQE-FPA1 43.0 inch 60Hz Lcd Panel

LD430EQE-FPA1 LCD Panel Product details :

Brand	LG Display
Model P/N	LD430EQE-FPA1
Diagonal Size	43"
Panel Type	a-Si TFT-LCD, LCM
Resolution	3840(RGB)×2160, UHD 103PPI
Pixel Format	RGB Vertical Stripe
Active Area	941.184(W)×529.416(H) mm
Bezel Opening	946.2(W)×534.4(H) mm
Outline Dim.	962(H)×554.8(V)×34.6(D) mm
Treatment	Antiglare (Haze 28%), Hard coating (2H)
Luminance	700 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	8 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	1.07B 99%sRGB
Light Source	WLED [6 strings × 2CN], 30K hours, W/O Driver
Weight	8.50/9.35Kgs (Typ./Max.)
Designed For	Digital Signage,Outdoor High Brightness
Frame Rate	60Hz
Touch Panel	Without
Interface Type	V-by-One 8 lane, 51 pinsConnector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LD430EQE-FPA1 43.0 inch 60Hz Lcd Panel

LD430EQE-FPA1 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

LD430EQE-FPA1 LCD Panel Shipping and Package :

LD430EQE-FPA1 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

LD430EQE-FPA1 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

LD430EQE-FPA1 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LD430EQE-FPA1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LD430EQE-FPA1 ?

A: we will give you traLD430EQE-FPA1cking number then you can trace your order from website.

Q: Can I pay my order of LD430EQE-FPA1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: If I place order now,when will you ship the goods of LD430EQE-FPA1 ?

A: The order will be shipped within 2-3 working days after received your payment.
