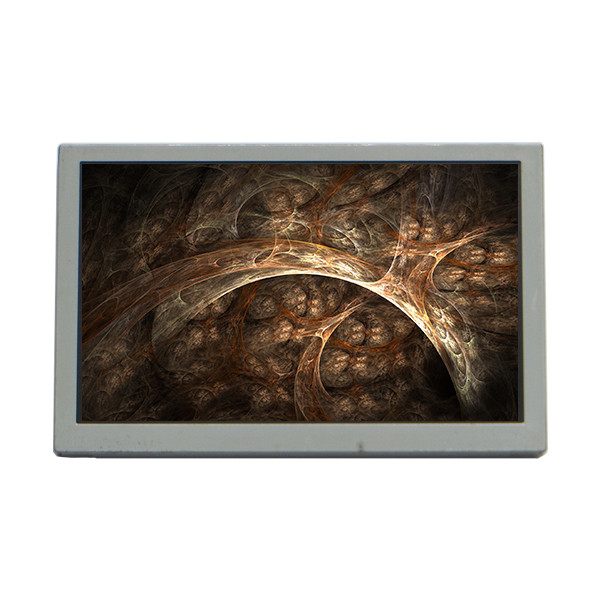

TCG070WVLPCANN-AN00-SA 7.0 inch 800*480 LCD Screen Panel

Brand Name:	Kyocera
Model Number:	TCG070WVLPCANN-AN00-SA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TCG070WVLPCANN-AN00-SA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Luminance:

450 (Typ.)(cd/m²)

Contrast Ratio:

1000:1 (Typ.) (TM)

Application:

Industrial

Voltage Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TCG070WVLPCANN-AN00-SA 7.0 inch 800*480 LCD Screen Panel

TCG070WVLPCANN-AN00-SA LCD Panel Product details :

Brand	Kyocera
Model P/N	TCG070WVLPCANN-AN00-SA
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	154.4(W)×93.4(H) mm
Outline(mm)	165(W)×104.4(H)×8.5(D)
Luminance	450 (Typ.)(cd/m²)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)
Good View at	-
Color Depth	262K 52% NTSC
Mass	195g
Refresh Rate	60Hz
Treatment	Antiglare
Contrast Ratio	1000 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	5/25 (Typ.)(Tr/Td) ms
Backlight	2 strings WLED , 50K hours , No Driver
Used for	Industrial
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 6-bit), 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
TCG070WVLPCANN-AN00-SA 7.0 inch 800*480 LCD Screen Panel

TCG070WVLPCANN-AN00-SA LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

TCG070WVLPCANN-AN00-SA LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

TCG070WVLPCANN-AN00-SA LCD Panel Shipping and Package :

TCG070WVLPCANN-AN00-SA LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

TCG070WVLPCANN-AN00-SA LCD Panel FAQ :

Q: What is the different between original lcd panel and compatible lcd display?

A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .

Q: Do you accept the TCG070WVLPCANN-AN00-SA sample order?

A: Yes , sample order is welcome.

Q: How to order if I don’t know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
