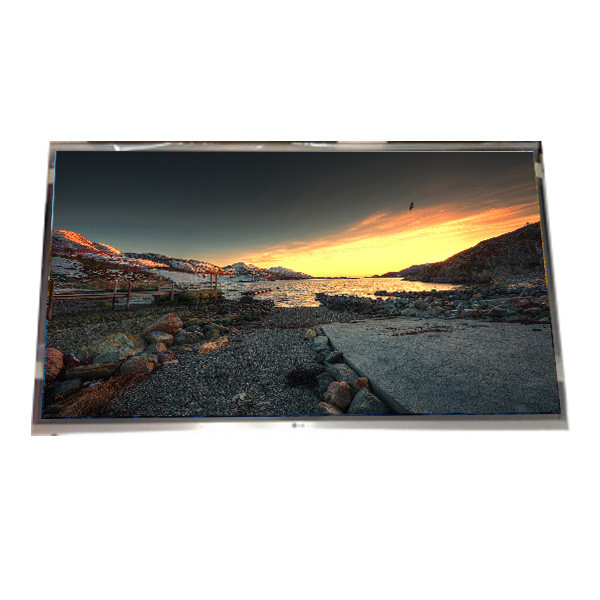

42.0 inch 1920*1080 LD420WUN-SBA1 lcd screen display for Digital Signage
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LD420WUN-SBA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LD420WUN-SBA1 | Diagonal Size: | 42" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 52PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 930.24(W)×523.26(H) Mm |
| Display Colors: | 16.7M/1.06B 72%NTSC | Lamp Type: | EEFL, 50K Hours, With Inverter |
| Designed For: | Digital Signage | Frame Rate: | 60Hz |
Product Description
42.0 inch 1920*1080 LD420WUN-SBA1 lcd screen display for Digital Signage
LD420WUN-SBA1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LD420WUN-SBA1 |
| Diagonal Size | 42" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 52PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 930.24(W)×523.26(H) mm |
| Bezel Opening | 939.0(W)×531.0(H) mm |
| Outline Size | 983(W)×576(H)×52(D) mm |
| Surface | Antiglare (Haze 10%), Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 9 (Typ.)(G to G) |
| Display Colors | 16.7M/1.06B 72%NTSC |
| Lamp Type | EEFL, 50K hours, With Inverter |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 11.5/12.5Kgs (Typ./Max.) |
| Application | Digital Signage |
| Signal Interface | LVDS (2 ch, 8/10-bit), 51 pinsConnector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 42.0 inch 1920*1080 LD420WUN-SBA1 lcd screen display for Digital Signage | |
