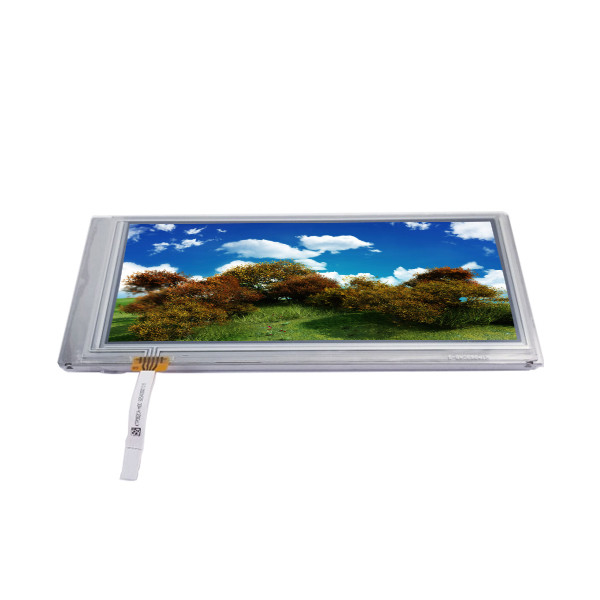

TCG062HVLDB-G20 6.2 inch 640*240 LCD Screen Module

Brand Name:	Kyocera
Model Number:	TCG062HVLDB-G20
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TCG062HVLDB-G20

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×240, HVGA 109PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

147.84(W)×55.44(H) Mm

Luminance:

240 Cd/m² (Typ.)

Contrast Ratio:

500 : 1 (Typ.) (TM)

Application:

Industrial

Voltage Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TCG062HVLDB-G20 6.2 inch 640*240 LCD Screen Module

TCG062HVLDB-G20 LCD Panel Product details :

Brand	Kyocera
Model P/N	TCG062HVLDB-G20
Diagonal Size	6.2"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×240, HVGA 109PPI
Pixel Format	RGB Vertical Stripe
Active Area	147.84(W)×55.44(H) mm
Bezel Opening	150.8(W)×58.5(H) mm
Outline Dim.	173(H)×70(V)×8.55(D) mm
Treatment	Glare (Haze 0%)
Luminance	240 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	-
Response Time	15/20 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥5)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 47%NTSC
Light Source	WLED, 40K hours, With LED Driver
Weight	135g (Typ.)
Designed For	Industrial
Frame Rate	-
Touch Panel	4-wire Resistive Touch
Interface Type	Parallel RGB (1 ch, 6-bit), 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
TCG062HVLDB-G20 6.2 inch 640*240 LCD Screen Module

TCG062HVLDB-G20 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

TCG062HVLDB-G20 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

TCG062HVLDB-G20 LCD Panel Shipping and Package :

TCG062HVLDB-G20 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

TCG062HVLDB-G20 LCD Panel FAQ :

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long is the warranty of TCG062HVLDB-G20 ?

A: NEW Product warranty is 90 days.

Q: How to order lcd panel TCG062HVLDB-G20 ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
