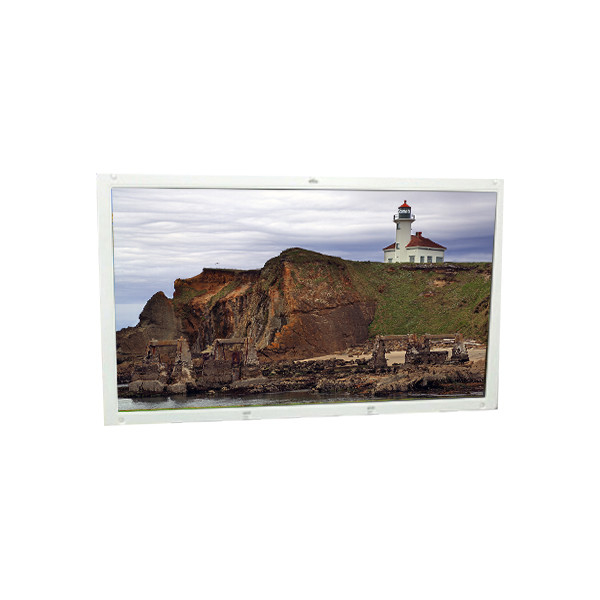

32.0 inch 1920*1080 LD320EUY-SQA4 Lcd screen for Digital Signage

Brand Name:	LG
Model Number:	LD320EUY-SQA4
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LD320EUY-SQA4

Diagonal Size:

32.0"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(3)×1080, FHD 69PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

698.4(W)×392.85(H) Mm

Display Colors:

16.7M 66%NTSC

Lamp Type:

No B/L

Supply Ability:

100000 Unit/Units per Month

Product Description

32.0 inch 1920*1080 LD320EUY-SQA4 Lcd screen for Digital Signage

LD320EUY-SQA4 LCD Panel Product details :

Brand	LG Display
Model P/N	LD320EUY-SQA4
Diagonal Size	32.0"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 69PPI
Pixel Format	RGB Vertical Stripe
Active Area	698.4(W)×392.85(H) mm
Bezel Opening	-
Outline Size	708.4(W)×405.4(H)×1.2(D) mm
Brightness	0 cd/m²
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Best View on	Symmetry
Glass Depth	0.40+0.50 mm
Display Colors	16.7M 66%NTSC
Frequency	60Hz
Weight	0.78/0.80Kgs (Typ.)
Surface	Antiglare (Haze 28%), Hard coating (2H)
Contrast Ratio	1100:1 (Typ.) (TM)
Display Mode	IPS, Normally Black, Transmissive
Response Time	6 (Typ.)(G to G)
Transmissivity	5.46% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	Without
Application	Digital Signage
Driver IC	COFBuilt-in 6 source chips
Signal Interface	LVDS (2 ch, 8-bit), 51 pinsConnector
Input Voltage	12V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
32.0 inch 1920*1080 LD320EUY-SQA4 Lcd screen for Digital Signage

LD320EUY-SQA4 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

LD320EUY-SQA4 LCD Panel Shipping and Package :

LD320EUY-SQA4 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

LD320EUY-SQA4 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

LD320EUY-SQA4 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LD320EUY-SQA4 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of LD320EUY-SQA4 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of LD320EUY-SQA4 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of LD320EUY-SQA4 ?

A: we will give you tracking number then you can trace your order from website.
