TCG058WXLPAPNN-AN30-S 5.8 inch 800 cd/m2 LCD Screen Display

Brand Name:	Kyocera
Model Number:	TCG058WXLPAPNN-AN30-S
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TCG058WXLPAPNN-AN30-S

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×768, WXGA 257PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

126.72(W)×74.88(H) Mm

Brightness:

800 Cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (TM)

Application:

Industrial

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

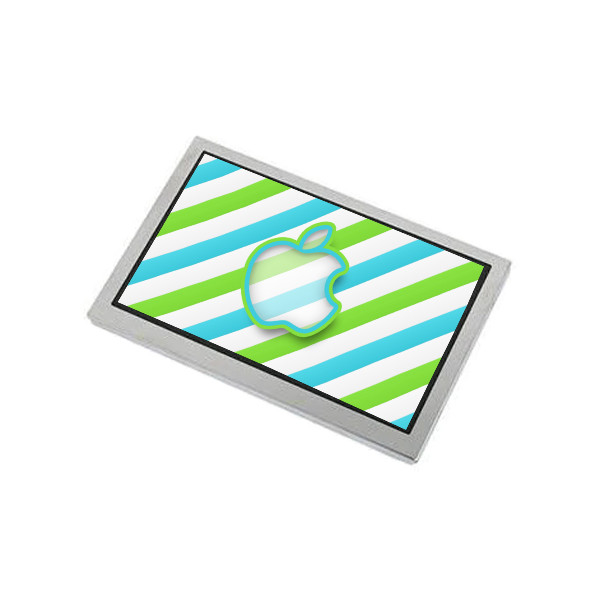

TCG058WXLPAPNN-AN30-S 5.8 inch 800 cd/m2 LCD Screen Display

TCG058WXLPAPNN-AN30-S LCD Panel Product details :

Brand	Kyocera
Model P/N	TCG058WXLPAPNN-AN30-S
Diagonal Size	5.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×768, WXGA 257PPI
Pixel Format	RGB Vertical Stripe
Active Area	126.72(W)×74.88(H) mm
Bezel Opening	130.16(W)×77.96(H) mm
Outline Size	141.29(W)×88.5(H)×7.99(D) mm
Brightness	800 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	262K/16.7M 42%NTSC
Frequency	60Hz
Weight	113g
Surface	Antiglare
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	AWV, Normally Black, Transmissive
Response Time	11/9 (Typ.)(Tr/Td)
Lamp Type	WLED , 50K hours , With LED Driver
Touch Screen	Without
Application	Industrial
Signal Interface	LVDS (1 ch, 6/8-bit), 20 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
