LCD Touch Panel Display

TCG057VGLBB-H50 5.7 inch 640*480 LCD Screen For Kyocera

All Category

Floor Standing Digital Signage

TCG057VGLBB-H50 5.7 inch 640*480 LCD Screen For Kyocera

Brand Name:	Kyocera
Model Number:	TCG057VGLBB-H50
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TCG057VGLBB-H50

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Brightness:

290 Cd/m² (Typ.)

Contrast Ratio:

500:1 (Typ.) (TM)

Application:

Industrial

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

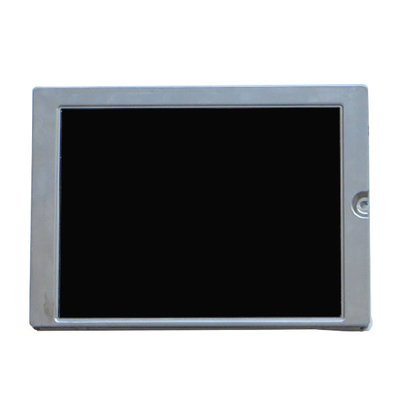

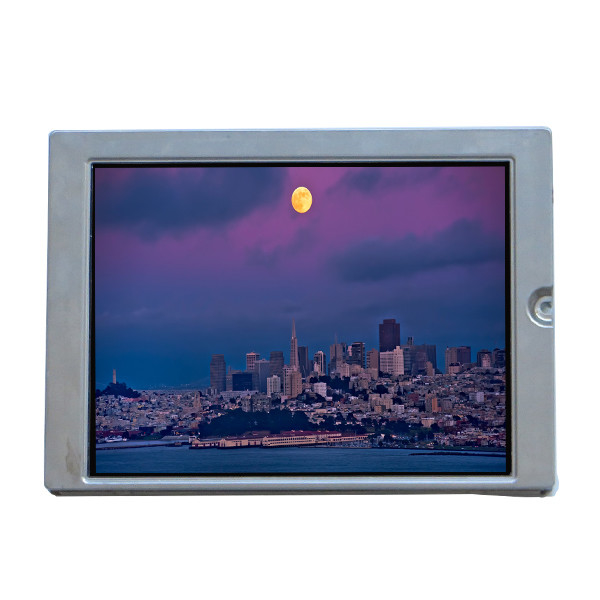

TCG057VGLBB-H50 5.7 inch 640*480 LCD Screen For Kyocera

TCG057VGLBB-H50 LCD Panel Product details :

Brand	Kyocera
Model P/N	TCG057VGLBB-H50
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	117.2(W)×88.4(H) mm
Outline Size	127.2(W)×100.4(H)×7.25(D) mm
Brightness	290 cd/m² (Typ.)
Viewing Angle	80/80/80/80 (Typ.)(CR≥5)
Best View on	-
Display Colors	262K 52%NTSC
Frequency	-
Weight	TBD
Surface	Glare (Haze 0%)
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	10/25 (Typ.)(Tr/Td)
Lamp Type	4 strings WLED , 37K hours , Without Driver
Touch Screen	4-wire Resistive Touch
Application	Industrial
Signal Interface	Parallel RGB (1 ch, 6-bit), 40 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
TCG057VGLBB-H50 5.7 inch 640*480 LCD Screen For Kyocera

TCG057VGLBB-H50 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

TCG057VGLBB-H50 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

TCG057VGLBB-H50 LCD Panel Shipping and Package :

TCG057VGLBB-H50 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

TCG057VGLBB-H50 LCD Panel FAQ :

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel TCG057VGLBB-H50 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
