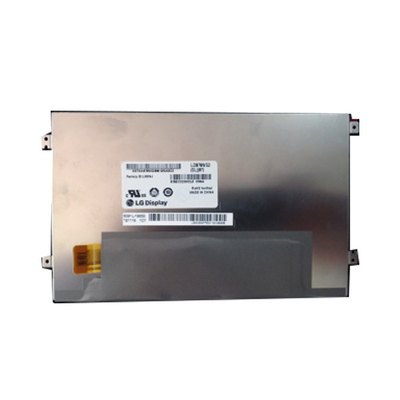

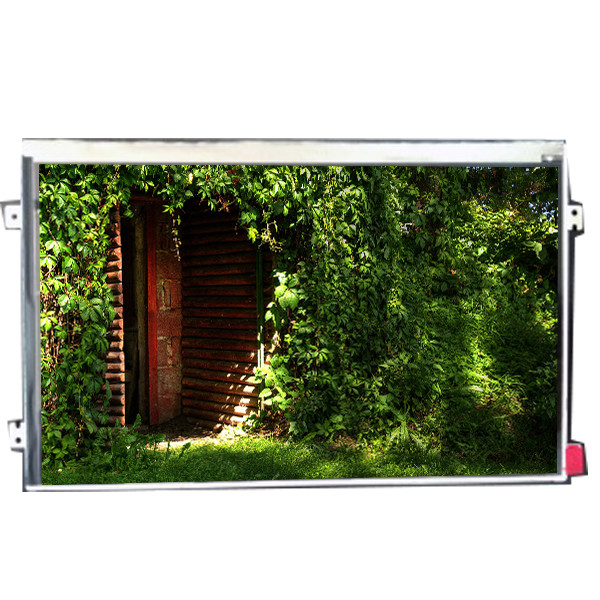

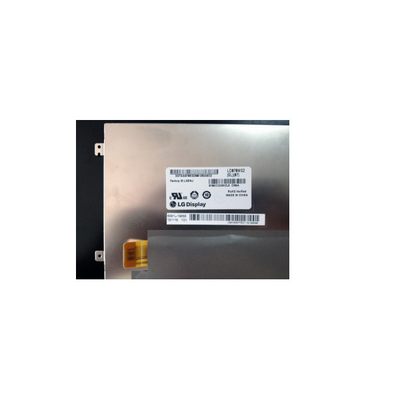

7.0 inch 1024*600 LD070WS2-SL07 Lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LD070WS2-SL07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LD070WS2-SL07 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 153.6(W)×90(H) Mm |
| Color Depth: | 16.7M 49%NTSC | Backlight: | WLED [5S4P], W/O Driver |
| Used For: | Pad & Tablet、MID UMPC | Refresh Rate: | 60Hz |
Product Description
7.0 inch 1024*600 LD070WS2-SL07 Lcd screen
LD070WS2-SL07 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LD070WS2-SL07 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×90(H) mm |
| Bezel Opening | - |
| Outline Dim. | 162.8(H)×102.9(V)×3.97(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 50 (Max.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 49%NTSC |
| Light Source | WLED [5S4P], W/O Driver |
| Weight | 94.0/98.0g (Typ./Max.) |
| Designed For | Pad & Tablet,MID UMPC |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) + SPI, 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| 7.0 inch 1024*600 LD070WS2-SL07 Lcd screen | |
LD070WS2-SL07 LCD Screen Payment Method and Instructions:
1. Accepted Payment Methods:
We accept the following payment methods:
PayPal
Western Union remittance
Bank transfer
ALI platform payment
etc.
2. Payment Confirmation Email:
After winning the auction, an email will be sent to your ALI registered email address with details on the payment process.
3. PayPal eCheck Payment:
If you choose to pay through PayPal using eCheck, please be aware that shipment will occur only after the eCheck has cleared. This is to ensure the security and validity of the payment.
4. Payment Deadline:
All payments are expected within 7 days after the last winning auction is closed. Failure to make full payment within this period may result in the opening of a non-payment dispute.
5. Shipping Address:
We will ship the item to the address provided during payment for fast and accurate shipment. If you need to change the shipping address, please add a note when making the payment. Ensure any changes are made promptly after payment to avoid shipping to an incorrect address.
LD070WS2-SL07 LCD Panel Shipping and Package :
LD070WS2-SL07 LCD Screen Shipping Information :
1. Shipping Rates and Inclusions:
Our shipping rates cover the cost of shipping, handling, packaging, and related manpower costs. This all-inclusive approach ensures a hassle-free delivery experience for our customers.
2. Undeliverable Address and Shipping Fees:
We are not responsible for undeliverable addresses. If an item is returned due to an incorrect address supplied by the buyer, we reserve the right to charge the shipping fee again. Please ensure that the address provided is accurate to avoid any complications.
Items not received due to an invalid address registered on PayPal are not eligible for a full refund or replacement under our policy.
3. Local Pick-Up:
Local pick-up is not available. All items will be shipped using our designated shipping methods.
4. Shipping Time and Tracking:
We offer worldwide shipping (except the USA) via flat rate shipping using Hong Kong Air Mail or China Air Mail. The estimated shipping time is 15 to 35 business days, excluding weekends.
Express Shipping Options:
EMS (5-8 days) or DHL (2-5 days) express post options are available at a higher cost (approximately $20 or higher). If you prefer expedited shipping, please contact us to arrange this service.
We are committed to providing you with reliable shipping options and keeping you informed throughout the process. If you have specific shipping preferences or inquiries, please do not hesitate to contact our customer service team.
LD070WS2-SL07 LCD Screen Return Policy :
1. Notification of Returns:
All returns must be communicated with the seller before initiating the return process. Please contact us to inform us of your intention to return the item.
2. Notification Period:
The buyer is required to notify the seller of any returned items within 7 days after receiving the package. We reserve the right to refuse any return requests that are communicated beyond this 7-day period.
3. Exchange for Buyer's Error:
In cases where the buyer orders the wrong part and wishes to exchange it, the buyer is responsible for covering the two-way shipping fees associated with the exchange.
4. Condition of Returned Items:
Return items must be in their original packaging and in good condition. Ensure that all components are included, and the item is securely packed to prevent any damage during return transit.
5. Non-Refundable Charges:
Return postage and insurance charges are non-refundable, whether you opt for a refund or request a new shipment.
6. Non-Refundable Shipping Fees:
Shipping fees incurred during the initial purchase are non-refundable.
We appreciate your understanding and cooperation with our return policy. If you have any questions or concerns regarding the return process, please contact our customer service team.
LD070WS2-SL07 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LD070WS2-SL07 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LD070WS2-SL07 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of LD070WS2-SL07 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
