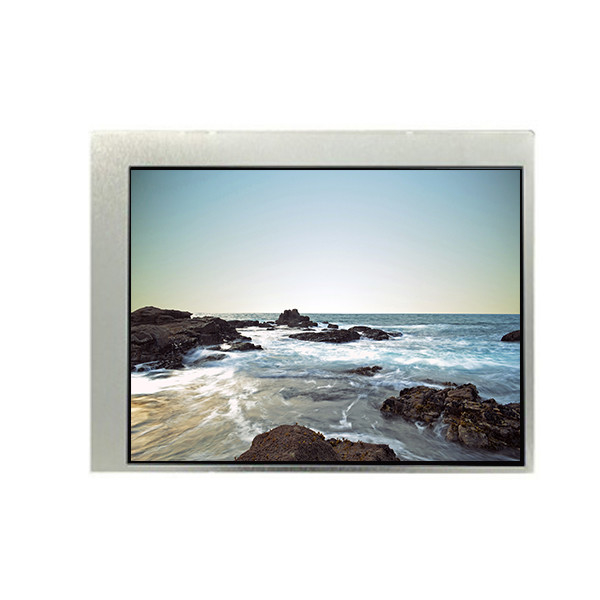

TCG057QVLHA-G50 5.7 inch 320*240 1000 cd/m2 LCD Screen For Kyocera
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG057QVLHA-G50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TCG057QVLHA-G50 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
| Brightness: | 1000 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Application: | Industrial、Outdoor High Brightness | Input Voltage: | 3.3V (Typ.) |
Product Description
TCG057QVLHA-G50 5.7 inch 320*240 1000 cd/m2 LCD Screen For Kyocera
TCG057QVLHA-G50 LCD Panel Product details :
| Brand | Kyocera |
| Model P/N | TCG057QVLHA-G50 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×240, QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 118.4(W)×89.6(H) mm |
| Outline Size | 134.5(W)×103.4(H)×8.5(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Display Colors | 262K 60%NTSC |
| Lamp Type | WLED, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Application | Industrial,Outdoor High Brightness |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 33 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| TCG057QVLHA-G50 5.7 inch 320*240 1000 cd/m2 LCD Screen For Kyocera | |
