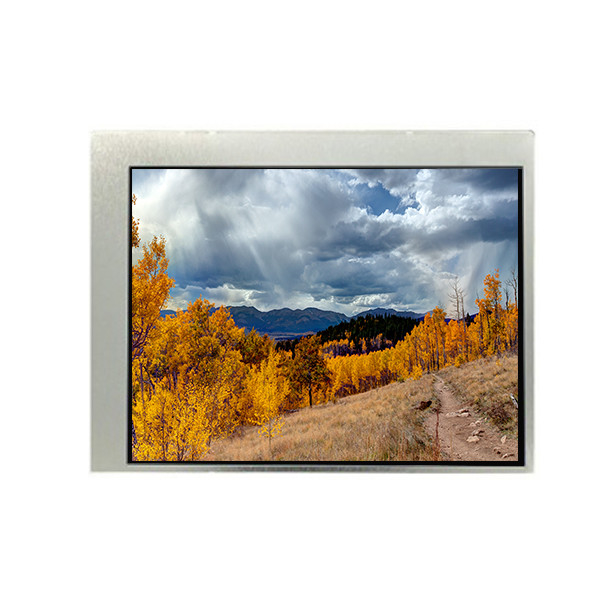

TCG057QVLGA-G00 5.7 inch 320*240 Industrial LCD Screen For Kyocera

Brand Name:	Kyocera
Model Number:	TCG057QVLGA-G00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TCG057QVLGA-G00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 70PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Brightness:

500 Cd/m² (Typ.)

Contrast Ratio:

500:1 (Typ.) (TM)

Application:

Industrial

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TCG057QVLGA-G00 5.7 inch 320*240 Industrial LCD Screen For Kyocera

TCG057QVLGA-G00 LCD Panel Product details :

Brand	Kyocera
Model P/N	TCG057QVLGA-G00
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 70PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	118.4(W)×89.6(H) mm
Outline(mm)	134.5 × 103.4× 8.5 (H×V×D)
Treatment	Glare (Haze 0%)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥5)
Response	35 (Typ.)(Tr+Td) ms
Good View at	12 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K 60%NTSC
Backlight	2 strings WLED, 70K hours, No Driver
Mass	TBD
Used for	Industrial
Refresh Rate	-
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 6-bit), 33 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
TCG057QVLGA-G00 5.7 inch 320*240 Industrial LCD Screen For Kyocera

TCG057QVLGA-G00 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

TCG057QVLGA-G00 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

TCG057QVLGA-G00 LCD Panel Shipping and Package :

TCG057QVLGA-G00 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

TCG057QVLGA-G00 LCD Panel FAQ :

Q: When will my order 5.7 inch lcd panel TCG057QVLGA-G00 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 5.7 inch lcd panel TCG057QVLGA-G00 before shipping?

A: Don't Worry , The TCG057QVLGA-G00 was tested ok before shipping.

Q: What happen if TCG057QVLGA-G00 I received can't work ?

A: TheTCG057QVLGA-G00 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
