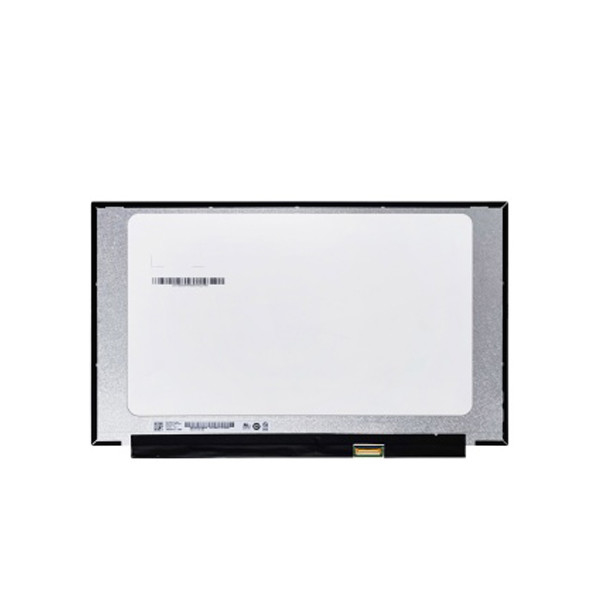

B156HAK02.0 HW2A 15.6 inch lcd screen high quality
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156HAK02.0 HW2A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156HAK02.0 HW2A | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.16(W)×193.59(H) Mm |
| Display Colors: | 262K 45%NTSC | Lamp Type: | WLED, 15K Hours, With LED Driver |
Product Description
B156HAK02.0 HW2A 15.6 inch lcd screen high quality
B156HAK02.0 HW2A LCD Panel Product details :
| Brand | AUO |
| Model P/N | B156HAK02.0 HW2A |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Outline(mm) | 350.56 × 223.6× 3.2 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 262K 45%NTSC |
| Backlight | WLED, 15K hours, With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | On-Cell Touch, USB |
| Signal Type | eDP (2 Lanes), eDP1.2, 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B156HAK02.0 HW2A LCD Screen Payment For Resellers :
Greetings from YONGS, located in Shenzhen! With over 12 years of experience in the laptop parts sourcing field, we take pride in our established reputation and expertise. Our core mission is to collaborate with retailers and repairers globally, facilitating the sourcing of laptop and mobile phone parts while optimizing cost efficiency through consolidated shipping.
Here's what sets us apart:
Extensive Experience: With over a decade of industry experience, we have honed our skills and knowledge to effectively meet the diverse needs of our clients.
Global Partnerships: We have cultivated strong partnerships with retailers and repairers worldwide, enabling us to access a wide range of quality laptop and mobile phone parts.
Cost Savings: By leveraging our network and expertise, we offer consolidated shipping options that help minimize costs for our valued resellers.
Whether you're in need of LCD screens, batteries, keyboards, or other laptop and mobile phone parts, YONGS is your trusted partner for sourcing reliable products at competitive prices. Contact us today to discuss your requirements and discover how we can support your business needs effectively.
B156HAK02.0 HW2A LCD Panel Shipping and Package :
B156HAK02.0 HW2A LCD Screen Warranty Policy:
120-Days Replacement Warranty: We offer a 120-day replacement warranty for cases of DOA (Dead On Arrival) and all manufacturer defects. This includes issues such as vertical and horizontal lines, fuzzy images, and distorted images. If you encounter any of these problems within the warranty period, please contact us promptly for a replacement.
Dead Pixel Tolerance: In line with ISO 13406-2 standards, it's important to note that 2-5 dead pixels are considered acceptable within the industry norms. If you do not agree with this standard, we kindly ask that you refrain from purchasing this product.
B156HAK02.0 HW2A LCD Screen Returns :
Damaged or Wrong Item: In the event that you receive a damaged or incorrect item, please reach out to us promptly via ALI message. We will make arrangements for the return and replacement of the item without delay.
Return Period: Returns are accepted within a 30-day period following the receipt of the item. This timeframe allows you sufficient time to inspect the product and initiate a return if necessary.
Safe Packaging: When returning the item, please ensure that it is safely packaged, similar to how it was originally sent to you. LCD screens are delicate and prone to damage during transit, so it is crucial to use the original packaging or pack it securely to prevent any further damage.
Buyer Responsibility: In cases where the buyer has purchased the wrong product, wrong size, or has simply changed their mind, the buyer is responsible for covering the return shipping costs. This policy ensures fairness and allows us to continue offering competitive prices on our products.
B156HAK02.0 HW2A LCD Panel FAQ :
Q: Do you accept sample orders for B156HAK02.0 HW2A ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of B156HAK02.0 HW2A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for B156HAK02.0 HW2A ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of B156HAK02.0 HW2A at a very low value ?
A: Yes , we can . pls inform us before shipping .
