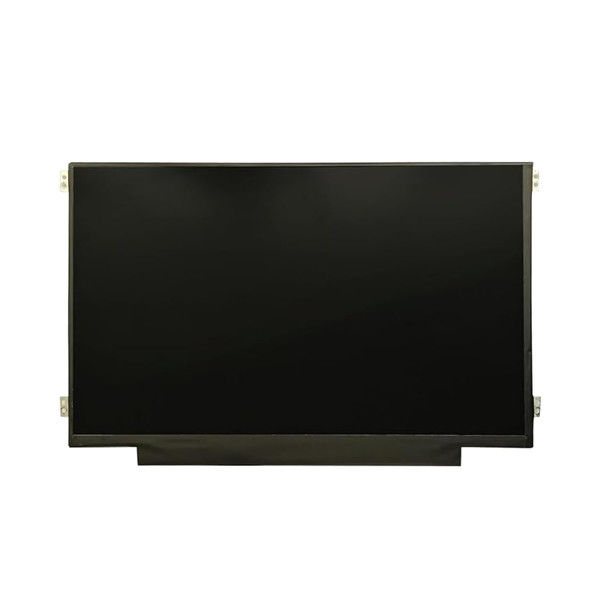

L133X2-1 13.3 inch LCD Display Panel 1024*768 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | L133X2-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | L133X2-1 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 96PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 270.336(W)×202.752(H) Mm |
| Display Colors: | 262K 47%NTSC | Lamp Type: | CCFL [1 Pcs], W/O Driver |
| Interface Type: | LVDS (1 Ch, 6-bit), 20 PinsConnector | Designed For: | Laptop |
Product Description
L133X2-1 13.3 inch LCD Display Panel 1024*768 LCD Screen
L133X2-1 LCD Panel Product details :
| Brand | ACER |
| Model P/N | L133X2-1 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 270.336(W)×202.752(H) mm |
| Bezel Opening | 274.3(W)×205.8(H) mm |
| Outline Dim. | 284(H)×214.5(V)×6.4(D) mm |
| Treatment | - |
| Luminance | 145 cd/m² (Typ.) |
| Contrast Ratio | 200:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 47%NTSC |
| Light Source | CCFL [1 pcs], W/O Driver |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
L133X2-1 LCD Screen Payment For Resellers :
Greetings from YONGS, located in Shenzhen! With over 12 years of experience in the laptop parts sourcing field, we take pride in our established reputation and expertise. Our core mission is to collaborate with retailers and repairers globally, facilitating the sourcing of laptop and mobile phone parts while optimizing cost efficiency through consolidated shipping.
Here's what sets us apart:
Extensive Experience: With over a decade of industry experience, we have honed our skills and knowledge to effectively meet the diverse needs of our clients.
Global Partnerships: We have cultivated strong partnerships with retailers and repairers worldwide, enabling us to access a wide range of quality laptop and mobile phone parts.
Cost Savings: By leveraging our network and expertise, we offer consolidated shipping options that help minimize costs for our valued resellers.
Whether you're in need of LCD screens, batteries, keyboards, or other laptop and mobile phone parts, YONGS is your trusted partner for sourcing reliable products at competitive prices. Contact us today to discuss your requirements and discover how we can support your business needs effectively.
L133X2-1 LCD Panel Shipping and Package :
L133X2-1 LCD Screen Warranty Policy:
120-Days Replacement Warranty: We offer a 120-day replacement warranty for cases of DOA (Dead On Arrival) and all manufacturer defects. This includes issues such as vertical and horizontal lines, fuzzy images, and distorted images. If you encounter any of these problems within the warranty period, please contact us promptly for a replacement.
Dead Pixel Tolerance: In line with ISO 13406-2 standards, it's important to note that 2-5 dead pixels are considered acceptable within the industry norms. If you do not agree with this standard, we kindly ask that you refrain from purchasing this product.
L133X2-1 LCD Screen Returns :
Damaged or Wrong Item: In the event that you receive a damaged or incorrect item, please reach out to us promptly via ALI message. We will make arrangements for the return and replacement of the item without delay.
Return Period: Returns are accepted within a 30-day period following the receipt of the item. This timeframe allows you sufficient time to inspect the product and initiate a return if necessary.
Safe Packaging: When returning the item, please ensure that it is safely packaged, similar to how it was originally sent to you. LCD screens are delicate and prone to damage during transit, so it is crucial to use the original packaging or pack it securely to prevent any further damage.
Buyer Responsibility: In cases where the buyer has purchased the wrong product, wrong size, or has simply changed their mind, the buyer is responsible for covering the return shipping costs. This policy ensures fairness and allows us to continue offering competitive prices on our products.
L133X2-1 LCD Panel FAQ :
Q: How long will I receive my goods L133X2-1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of L133X2-1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of L133X2-1 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
