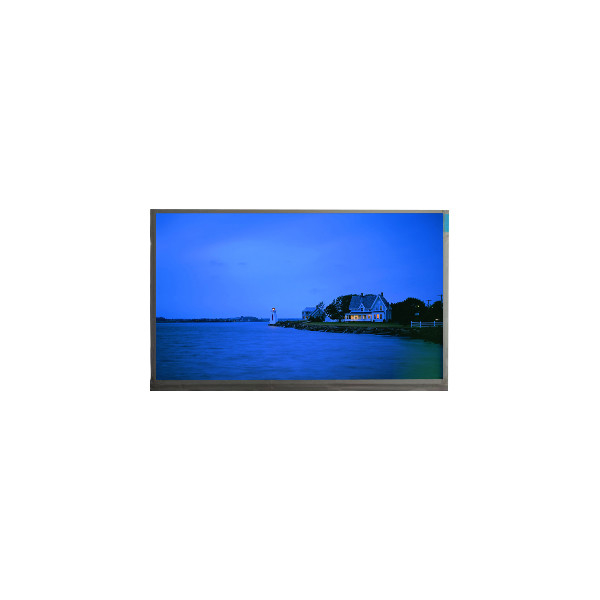

ZJ090NA-03C 9.0 inch 800*480 LCD Screen lcd panel

All Category

Floor Standing Digital Signage

ZJ090NA-03C 9.0 inch 800*480 LCD Screen lcd panel

Brand Name:	Chimei Innolux
Model Number:	ZJ090NA-03C
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

ZJ090NA-03C

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 104PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

198(W)×111.696(H) Mm

Designed For:

Automotive Display

Frame Rate:

Support Color:

16.7M 50% NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

ZJ090NA-03C 9.0 inch 800*480 LCD Screen lcd panel

ZJ090NA-03C LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	ZJ090NA-03C
Diagonal Size	9.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 104PPI
Pixel Format	RGB Vertical Stripe
Active Area	198(W)×111.696(H) mm
Bezel Opening	201.0(W)×114.7(H) mm
Outline Dim.	211.1 × 126.5 × 6.2 (H×V×D)
Treatment	Antiglare
Luminance	250 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	10/15 (Typ.)(Tr/Td) ms
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 50% NTSC
Light Source	3S11P WLED , 20K hours , No Driver
Weight	253g (Typ.)
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 8-bit) , 50 pins FPC
Power Supply	3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 80 °C

ZJ090NA-03C LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

ZJ090NA-03C LCD Panel Shipping and Package :

ZJ090NA-03C LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

ZJ090NA-03C LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

ZJ090NA-03C LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of ZJ090NA-03C ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of ZJ090NA-03C to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of ZJ090NA-03C ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
