LCD Screen Display Panel

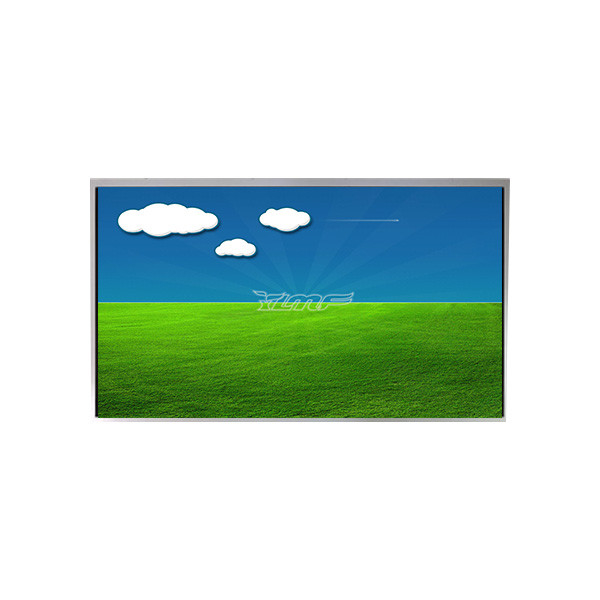

TL050JDXP03-00 5.0 inch 720*1280 LCD Screen lcd panel

All Category

Floor Standing Digital Signage

TL050JDXP03-00 5.0 inch 720*1280 LCD Screen lcd panel

Brand Name:	TIANMA
Model Number:	TL050JDXP03-00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TL050JDXP03-00

Diagonal Size:

Panel Type:

LTPS TFT-LCD, LCM

Resolution:

720(RGB)×1280, WXGA 294PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

62.1(W)×110.4(H) Mm

Designed For:

Mobile Phone

Frame Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

TL050JDXP03-00 5.0 inch 720*1280 LCD Screen lcd panel

TL050JDXP03-00 LCD Panel Product details :

Brand	TIANMA
Model P/N	TL050JDXP03-00
Diagonal Size	5.0"
Panel Type	LTPS TFT-LCD, LCM
Resolution	720(RGB)×1280, WXGA 294PPI
Pixel Format	RGB Vertical Stripe
Active Area	62.1(W)×110.4(H) mm
Bezel Opening	-
Outline Size	64.9(W)×119.99(H)×1.55(D) mm
Treatment	Clear, Hard coating (3H)
Luminance	420 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	SFT, Normally Black, Transmissive
Color Depth	16.7M 70%NTSC
Backlight	6S2PWLED, No Driver
Mass	TBD
Used for	Mobile Phone
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	MIPI (4 data lanes), 35 pinsFPC
Voltage Supply	1.8/2.8V (Typ.)(IOVCC/VDD)
Max. Ratings	Storage Temp.: -40 ~ 80 °C Operating Temp.: -20 ~ 70 °C

TL050JDXP03-00 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

TL050JDXP03-00 LCD Panel Shipping and Package :

TL050JDXP03-00 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

TL050JDXP03-00 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

TL050JDXP03-00 LCD Panel FAQ :

Q: How long will I receive my goods TL050JDXP03-00 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q:If I place order now,when will you ship the goods of TL050JDXP03-00 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q:Do you accept sample orders of TL050JDXP03-00 ?

A:Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .
