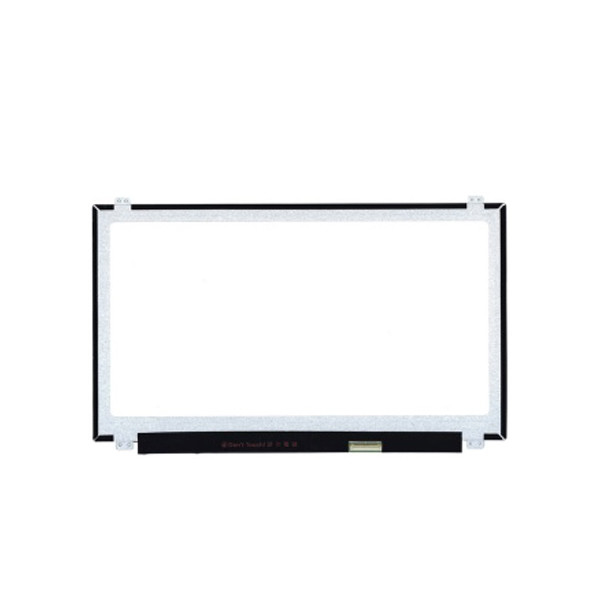

B156XTN08.0 HWAA 15.6 inch 1366*768 original lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156XTN08.0 HWAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156XTN08.0 HWAA | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.232(W)×193.536(H) Mm |
| Display Colors: | 262K 45% NTSC | Lamp Type: | WLED, 15K Hours , With LED Driver |
Product Description
B156XTN08.0 HWAA 15.6 inch 1366*768 original lcd screen
B156XTN08.0 HWAA LCD Panel Product details :
| Brand | AUO |
| Model P/N | B156XTN08.0 HWAA |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | - |
| Outline Dim. | 350.66(W)×216.15(H)×3.2(D) mm |
| Luminance | 220 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 45/45/15/35 (Min.)(CR≥10) |
| Support Color | 262K 45% NTSC |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Frame Rate | 60Hz |
| Treatment | Glare (Haze 0%) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Response Time | 8 (Typ.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED, 15K hours , With LED Driver |
| Designed For | Laptop |
| Touch Panel | - |
| Interface Type | eDP (1 Lane), eDP1.240 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
B156XTN08.0 HWAA LCD Screen Payment For Resellers :
Greetings from YONGS, located in Shenzhen! With over 12 years of experience in the laptop parts sourcing field, we take pride in our established reputation and expertise. Our core mission is to collaborate with retailers and repairers globally, facilitating the sourcing of laptop and mobile phone parts while optimizing cost efficiency through consolidated shipping.
Here's what sets us apart:
Extensive Experience: With over a decade of industry experience, we have honed our skills and knowledge to effectively meet the diverse needs of our clients.
Global Partnerships: We have cultivated strong partnerships with retailers and repairers worldwide, enabling us to access a wide range of quality laptop and mobile phone parts.
Cost Savings: By leveraging our network and expertise, we offer consolidated shipping options that help minimize costs for our valued resellers.
Whether you're in need of LCD screens, batteries, keyboards, or other laptop and mobile phone parts, YONGS is your trusted partner for sourcing reliable products at competitive prices. Contact us today to discuss your requirements and discover how we can support your business needs effectively.
B156XTN08.0 HWAA LCD Panel Shipping and Package :
B156XTN08.0 HWAA LCD Screen Warranty Policy:
120-Days Replacement Warranty: We offer a 120-day replacement warranty for cases of DOA (Dead On Arrival) and all manufacturer defects. This includes issues such as vertical and horizontal lines, fuzzy images, and distorted images. If you encounter any of these problems within the warranty period, please contact us promptly for a replacement.
Dead Pixel Tolerance: In line with ISO 13406-2 standards, it's important to note that 2-5 dead pixels are considered acceptable within the industry norms. If you do not agree with this standard, we kindly ask that you refrain from purchasing this product.
B156XTN08.0 HWAA LCD Screen Returns :
Damaged or Wrong Item: In the event that you receive a damaged or incorrect item, please reach out to us promptly via ALI message. We will make arrangements for the return and replacement of the item without delay.
Return Period: Returns are accepted within a 30-day period following the receipt of the item. This timeframe allows you sufficient time to inspect the product and initiate a return if necessary.
Safe Packaging: When returning the item, please ensure that it is safely packaged, similar to how it was originally sent to you. LCD screens are delicate and prone to damage during transit, so it is crucial to use the original packaging or pack it securely to prevent any further damage.
Buyer Responsibility: In cases where the buyer has purchased the wrong product, wrong size, or has simply changed their mind, the buyer is responsible for covering the return shipping costs. This policy ensures fairness and allows us to continue offering competitive prices on our products.
B156XTN08.0 HWAA LCD Panel FAQ :
Q: Can I pay my goods B156XTN08.0 HWAA by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods B156XTN08.0 HWAA ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Can you give me a discount if I need a large quantity of B156XTN08.0 HWAA ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of B156XTN08.0 HWAA ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
