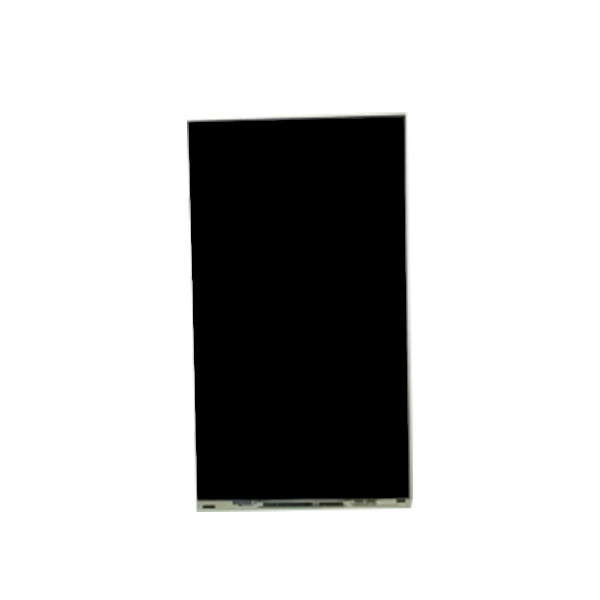

H644DAN02.0 6.4 inch 1080*1920 LCD Screen For Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | H644DAN02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | H644DAN02.0 | Diagonal Size: | 6.4" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, CELL, COG | Resolution: | 1080(RGB)×1920, FHD 342PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 80.19(W)×142.56(H) Mm |
| Designed For: | Mobile Phone | Light Source: | No B/L |
| Touch Panel: | On-Cell Touch | D-IC Detail: | COG Built-in R61322 |
Product Description
H644DAN02.0 6.4 inch 1080*1920 LCD Screen For Phone
H644DAN02.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | H644DAN02.0 |
| Diagonal Size | 6.4" |
| Panel Type | LTPS TFT-LCD, CELL, COG |
| Resolution | 1080(RGB)×1920, FHD 342PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 80.19(W)×142.56(H) mm |
| Bezel Opening | - |
| Outline Dim. | 82.59(H)×149.96(V)×0.28(D) mm |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Plate Thickness | - |
| Transmittance | 3.85% (Typ.)(with Polarizer) |
| Support Color | 16.7M 70%NTSC |
| Light Source | No B/L |
| Weight | TBD |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | On-Cell Touch |
| D-IC Detail | COG Built-in R61322 |
| Interface Type | MIPI |
| Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -55 ~ 110 °C |
