LCD Screen Display Panel

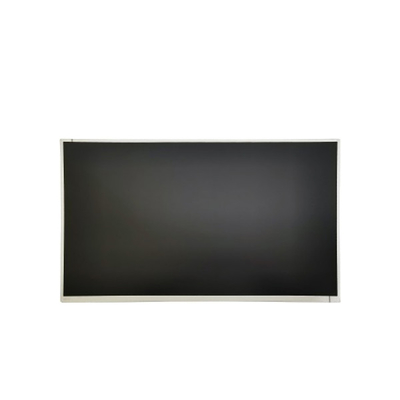

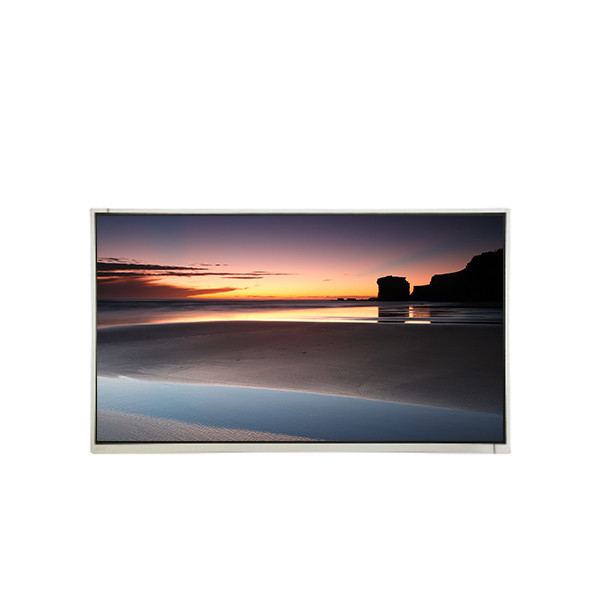

M238DTN01.1 CELL 23.8 inch 2560*1440 LCD Screen For Desktop Monitor

All Category

Floor Standing Digital Signage

M238DTN01.1 CELL 23.8 inch 2560*1440 LCD Screen For Desktop Monitor

Brand Name:	AUO
Model Number:	M238DTN01.1 CELL
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238DTN01.1 CELL

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

2560(RGB)×1440, Quad-HD 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

526.85(W)×296.35(H) Mm

Designed For:

Desktop Monitor

Frame Rate:

Viewing Angle:

85/85/80/80 (Typ.)(CR≥10)

Plate Thickness:

0.50+0.50 Mm

Supply Ability:

100000 Unit/Units per Month

Product Description

M238DTN01.1 CELL 23.8 inch 2560*1440 LCD Screen For Desktop Monitor

M238DTN01.1 CELL LCD Panel Product details :

Brand	AUO
Model P/N	M238DTN01.1 CELL
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	2560(RGB)×1440, Quad-HD 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	526.85(W)×296.35(H) mm
Bezel Opening	-
Outline Dim.	536.048(H)×309.206(V)×1.44(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	3.5/1.5 (Typ.)(Tr/Td)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	3.8% (Typ.)(with Polarizer)
Support Color	16.7M 72%NTSC
Light Source	No B/L
Weight	520g (Typ.)
Designed For	Desktop Monitor
Frame Rate	85Hz
Touch Panel	Without
D-IC Detail	COF Built-in 8 source chips
Interface Type	LVDS (4 ch, 8-bit), 70 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

M238DTN01.1 CELL LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

M238DTN01.1 CELL LCD Panel Shipping and Package :

M238DTN01.1 CELL LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

M238DTN01.1 CELL LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

M238DTN01.1 CELL LCD Panel FAQ :

Q: Can I pay my order of M238DTN01.1 CELL via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of M238DTN01.1 CELL ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of M238DTN01.1 CELL ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .
