LCD Screen Display Panel

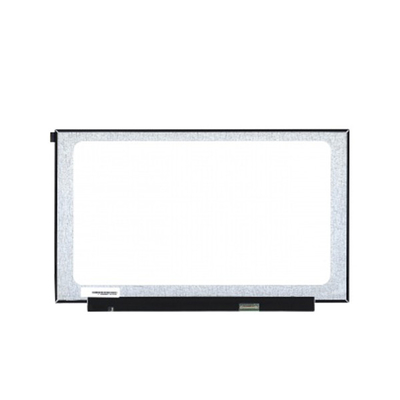

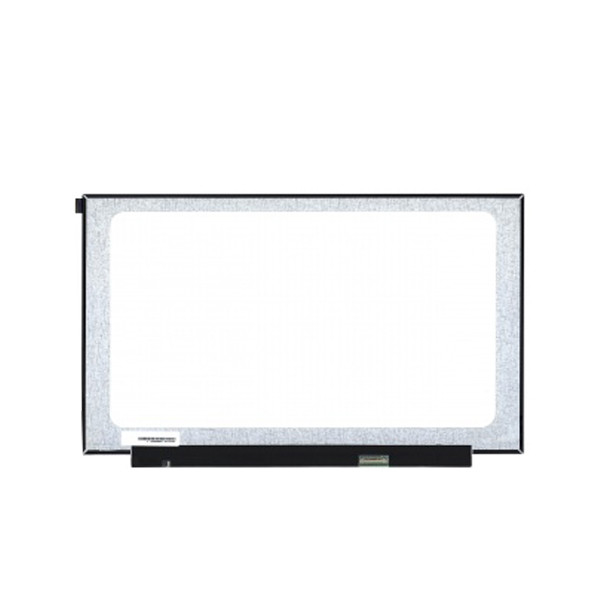

TV173FHM-NS0 17.3 inch 1920*1080 LCD Screen Panel

All Category

Floor Standing Digital Signage

TV173FHM-NS0 17.3 inch 1920*1080 LCD Screen Panel

Brand Name:	BOE
Model Number:	TV173FHM-NS0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TV173FHM-NS0

Diagonal Size:

17.3"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 127PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

381.888(W)×214.812(H) Mm

Designed For:

Pad & Tablet

Frame Rate:

Signal Interface:

EDP (2 Lanes), EDP1.2, HBR1 (2.7G/lane), 45 Pins Connector

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TV173FHM-NS0 17.3 inch 1920*1080 LCD Screen Panel

TV173FHM-NS0 LCD Panel Product details :

Brand	BOE
Model P/N	TV173FHM-NS0
Diagonal Size	17.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 127PPI
Pixel Format	RGB Vertical Stripe
Active Area	381.888(W)×214.812(H) mm
Bezel Opening	-
Brightness	480 cd/m² (Typ.)
Contrast Ratio	1200:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	ADS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Display Colors	16.7M 71%NTSC
Lamp Type	WLED, 15K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	470/520g (Typ./Max.)
Application	Pad & Tablet
Signal Interface	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 45 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

TV173FHM-NS0 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

TV173FHM-NS0 LCD Panel Shipping and Package :

TV173FHM-NS0 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

TV173FHM-NS0 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

TV173FHM-NS0 LCD Panel FAQ :

Q: Can You declare my order of TV173FHM-NS0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of TV173FHM-NS0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of TV173FHM-NS0 ?

A: Of course!If you make a large order, we will give you a discount.
