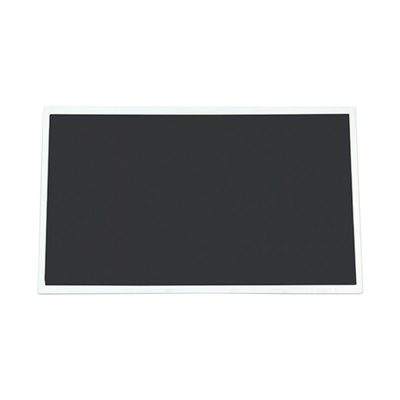

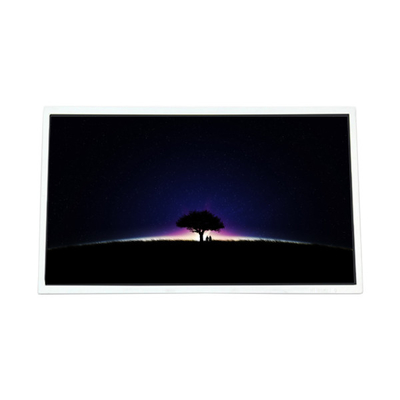

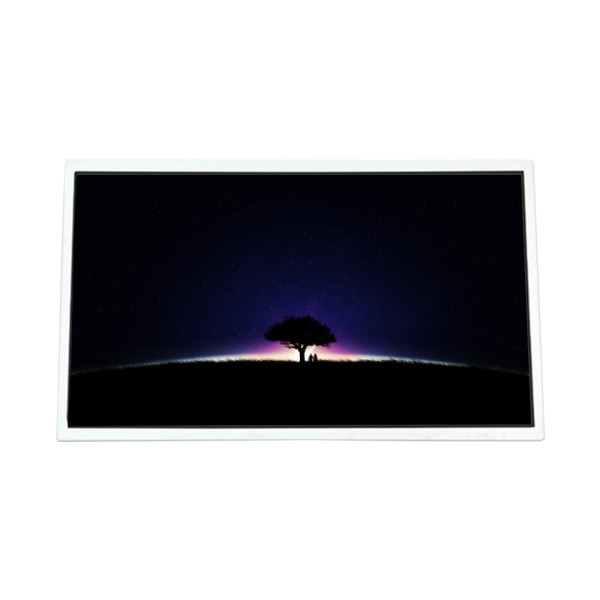

MV270QUB-N20 27.0 inch 4K LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV270QUB-N20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV270QUB-N20 | Diagonal Size: | 27.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 3840(RGB)×2160, UHD 163PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 596.736(W)×335.664(H) Mm |
| Designed For: | Desktop Monitor | Frame Rate: | 60Hz |
| Treatment: | Antiglare (Haze 25%), Hard Coating (3H) | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
Product Description
MV270QUB-N20 27.0 inch 4K LCD Screen Panel
MV270QUB-N20 LCD Panel Product details :
| Brand | BOE |
| Model P/N | MV270QUB-N20 |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 3840(RGB)×2160, UHD 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 596.736(W)×335.664(H) mm |
| Bezel Opening | - |
| Outline(mm) | 608.136(W)×348.114(H) |
| Luminance | 0 (cd/m²) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | - |
| Color Depth | 16.7M 100% sRGB |
| Mass | 664g (Typ.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | ADS, Normally Black, Transmissive |
| Response | 14 (Typ.)(G to G) ms |
| Transmissivity | 3.7% (Typ.)(with Polarizer) |
| Backlight | No B/L |
| Used for | Desktop Monitor |
| Touchscreen | Without |
| Driver IC list | Built-inCOF8 source chips |
| Signal Type | eDP (4 Lanes), HBR2 (5.4G/lane), 30 pins Connector |
| Voltage Supply | 10.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
MV270QUB-N20 LCD Panel Specification :
Quality Assurance:
Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.
MV270QUB-N20 LCD Panel Shipping and Package :
MV270QUB-N20 LCD Panel Shipping Information :
Standard Shipping Practices:
We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.
Processing Time:
We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.
Contact Information Requirement:
To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.
Attention – Expedited Shipping Options:
For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.
MV270QUB-N20 LCD Panel Return Policy :
Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.
In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.
Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.
MV270QUB-N20 LCD Panel FAQ :
Q: Can I pay my goods MV270QUB-N20 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods MV270QUB-N20 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Can you give me a discount if I need a large quantity of MV270QUB-N20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of MV270QUB-N20 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
