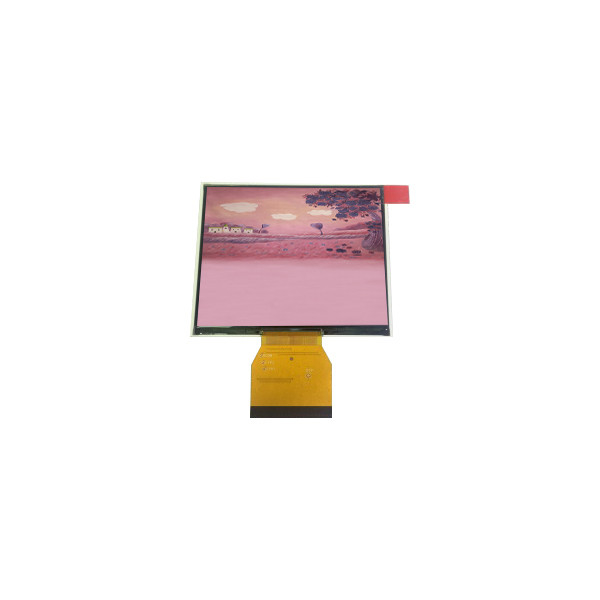

TM065JYSM01-00 6.5 inch 720*1600 LCD Screen LCD Display

Brand Name:	TIANMA
Model Number:	TM065JYSM01-00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM065JYSM01-00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Full Cell

Resolution:

720(RGB)×1600 267PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.256(W)×151.68(H) Mm

Designed For:

Mobile Phone

Color Depth:

16.7M 72%NTSC

Driver IC List:

Suggest COG FT8006P

Max. Ratings:

Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

TM065JYSM01-00 6.5 inch 720*1600 LCD Screen LCD Display

TM065JYSM01-00 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM065JYSM01-00
Diagonal Size	6.5"
Panel Type	a-Si TFT-LCD, CELL, Full Cell
Resolution	720(RGB)×1600 267PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.256(W)×151.68(H) mm
Bezel Opening	-
Outline Size	70.256(W)×156.68(H)×0.3(D) mm
Treatment	-
Luminance	0 cd/m²
Contrast Ratio	1500 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	30 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	FFS, Normally Black, Transmissive
Glass Thickness	0.15+0.15 mm
Transmissivity	3.6% (Typ.)
Color Depth	16.7M 72%NTSC
Backlight	No B/L
Mass	-
Used for	Mobile Phone
Refresh Rate	-
Touchscreen	Without
Driver IC list	Suggest COG FT8006P
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

TM065JYSM01-00 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

TM065JYSM01-00 LCD Panel Shipping and Package :

TM065JYSM01-00 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

TM065JYSM01-00 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

TM065JYSM01-00 LCD Panel FAQ :

Q: Can you tested the TM065JYSM01-00 before shipping ?

A: Of course , our lcd panel TM065JYSM01-00 was Strictly tested before shipping.

Q: How to order TM065JYSM01-00 ?

A: We accept T/T , Paypal , western union .

Q: What happen if the lcd panel TM065JYSM01-00 received can't work ?

A:TM065JYSM01-00 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
