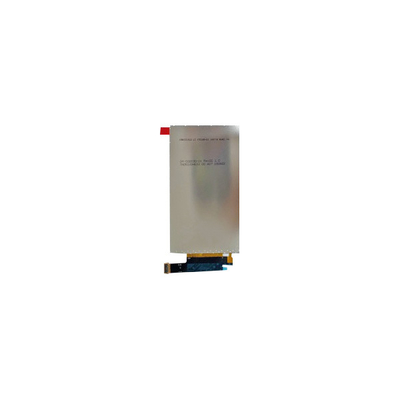

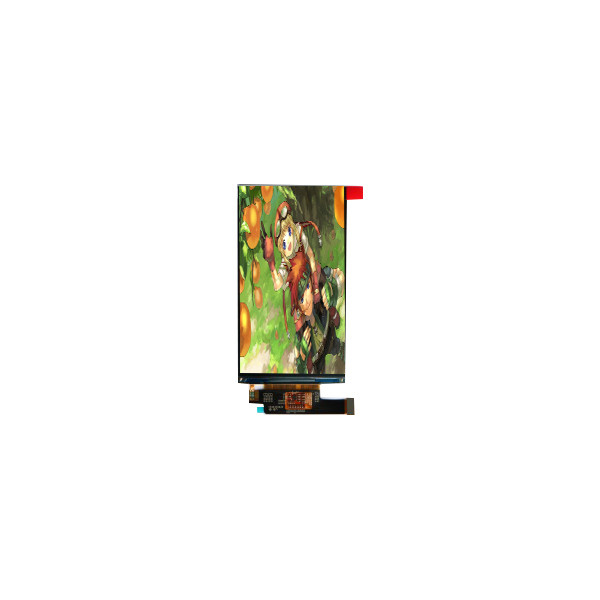

TM050JDHG33-00 5.0 inch 720*1280 LCD screen For Phone

Brand Name:	TIANMA
Model Number:	TM050JDHG33-00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM050JDHG33-00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

720(RGB)×1280, WXGA 294PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

62.1(W)×110.4(H) Mm

Designed For:

Mobile Phone、Handheld & PDA

Lamp Type:

6S2P WLED , 20K Hours , Without Driver

Surface:

Clear, Hard Coating

Contrast Ratio:

800:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

TM050JDHG33-00 5.0 inch 720*1280 LCD screen For Phone

TM050JDHG33-00 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM050JDHG33-00
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	720(RGB)×1280, WXGA 294PPI
Pixel Format	RGB Vertical Stripe
Active Area	62.1(W)×110.4(H) mm
Bezel Opening	-
Outline Size	65.4(W)×118.9(H)×1.82(D) mm
Brightness	600 cd/m² (Typ.)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 70%NTSC
Frequency	60Hz
Weight	27g
Surface	Clear, Hard coating
Contrast Ratio	800:1 (Typ.) (TM)
Display Mode	SFT, Normally Black, Transmissive
Response Time	30 (Typ.)(Tr+Td)
Lamp Type	6S2P WLED , 20K hours , Without Driver
Touch Screen	Without
Application	Mobile Phone,Handheld & PDA
Signal Interface	MIPI (4 data lanes), 34 pinsConnector
Input Voltage	1.8/2.8V (Typ.)(VDDIO/VDD)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

TM050JDHG33-00 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

TM050JDHG33-00 LCD Panel Shipping and Package :

TM050JDHG33-00 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

TM050JDHG33-00 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

TM050JDHG33-00 LCD Panel FAQ :

Q: Can You declare my order of TM050JDHG33-00 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of TM050JDHG33-00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of TM050JDHG33-00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long will I receive my goods TM050JDHG33-00 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
