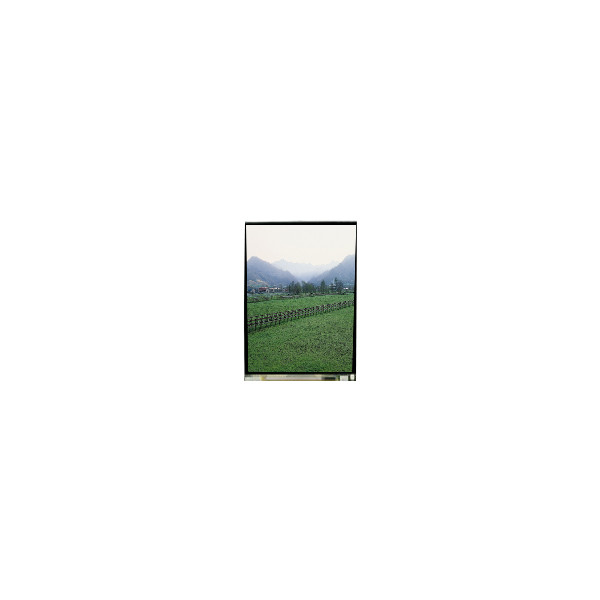

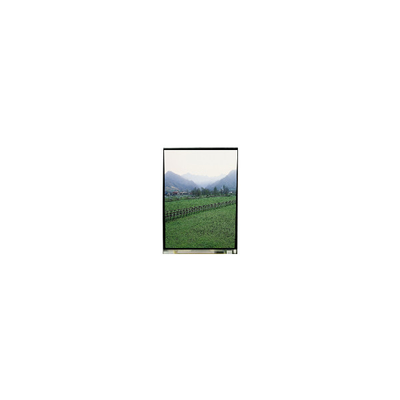

LS052T1SX02 5.2 inch 1080*1920 LCD screen For Mobile Phone

All Category

Floor Standing Digital Signage

LS052T1SX02 5.2 inch 1080*1920 LCD screen For Mobile Phone

Brand Name:	Sharp
Model Number:	LS052T1SX02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LS052T1SX02

Diagonal Size:

Panel Type:

CG-Silicon, LCM

Resolution:

1080(RGB)×1920, FHD 427PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

64.152(W)×114.048(H) Mm

Designed For:

Mobile Phone

Lamp Type:

7S2PWLED, No Driver

Good View At:

Symmetry

Work Mode:

New Mode2, Normally Black, Transmissive

Supply Ability:

100000 Unit/Units per Month

Product Description

LS052T1SX02 5.2 inch 1080*1920 LCD screen For Mobile Phone

LS052T1SX02 LCD Panel Product details :

Brand	Sharp
Model P/N	LS052T1SX02
Diagonal Size	5.2"
Panel Type	CG-Silicon, LCM
Resolution	1080(RGB)×1920, FHD 427PPI
Pixel Format	RGB Vertical Stripe
Active Area	64.152(W)×114.048(H) mm
Bezel Opening	-
Outline (mm)	65.552×119.698×1.2 (H×V×D)
Treatment	-
Luminance	600 cd/m² (Typ.)
Contrast Ratio	1500 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Response	32 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	New Mode2, Normally Black, Transmissive
Color Depth	16.7M 95%NTSC
Backlight	7S2PWLED, No Driver
Mass	15.0g (Typ.)
Used for	Mobile Phone
Refresh Rate	60Hz
Touchscreen	PCAP, I²C
Signal Type	MIPI (4 data lanes), Connector40 pins
Voltage Supply	1.8/5.6/-5.6V (Typ.)(VDDI/VSP/VSN)
Max. Ratings	Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
LS052T1SX02 5.2 inch New Original LCD Screen for Phone Suppliers

LS052T1SX02 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

LS052T1SX02 LCD Panel Shipping and Package :

LS052T1SX02 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

LS052T1SX02 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

LS052T1SX02 LCD Panel FAQ :

Q: Can you tested the LS052T1SX02 before shipping ?

A: Of course , our lcd panel LS052T1SX02 was Strictly tested before shipping.

Q: How to order HannStar LS052T1SX02 ?

A: We accept T/T , Paypal , western union .

Q: How long the warranty of the lcd LS052T1SX02 ?

A: 90 days .

Q: What happen if the lcd panel LS052T1SX02 I received can't work ?

A: LS052T1SX02 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
