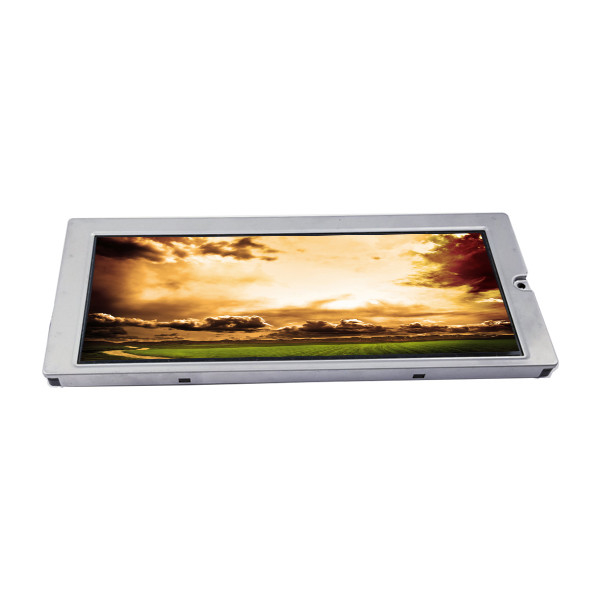

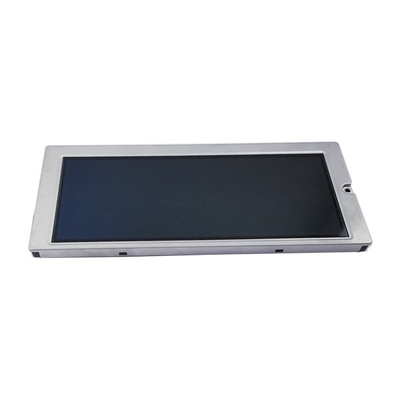

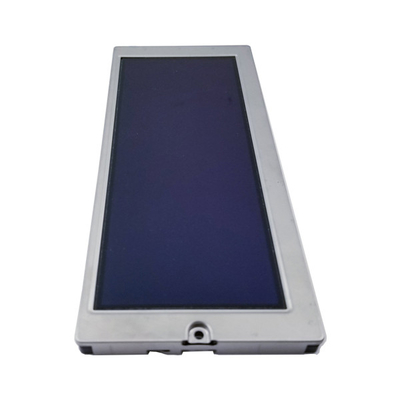

KHG062HVLAP-G000 6.2 inch 640*240 LCD SCREEN DISPLAY
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KHG062HVLAP-G000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | KHG062HVLAP-G000 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Panel Type: | CSTN-LCD, LCM | Resolution: | 640(RGB)×240, HVGA 109PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 147.84(W)×55.44(H) Mm |
| Designed For: | Industrial | Lamp Type: | WLED, 20K Hours, With LED Driver |
Product Description
KHG062HVLAP-G000 6.2 inch 640*240 LCD SCREEN DISPLAY
KHG062HVLAP-G000 LCD Panel Product details :
| Brand | Kyocera |
| Model P/N | KHG062HVLAP-G000 |
| Diagonal Size | 6.2" |
| Panel Type | CSTN-LCD, LCM |
| Resolution | 640(RGB)×240, HVGA 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 147.84(W)×55.44(H) mm |
| Bezel Opening | 152.4(W)×60.0(H) mm |
| Outline Size | 174.2(W)×73.4(H)×14.8(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 45 cd/m² (Typ.) |
| Contrast Ratio | 20 : 1 (Typ.) (TM) 10:1 (Typ.) (RF) |
| Viewing Angle | 45/45/30/20 (Typ.)(CR≥2) |
| Response | 190/180 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | STN, Normally Black, Transflective |
| Color Depth | Color |
| Backlight | WLED, 20K hours, With LED Driver |
| Mass | TBD |
| Used for | Industrial |
| Refresh Rate | 75Hz |
| Touchscreen | 4-wire Resistive Touch |
| Signal Type | Parallel Data (1ch, 8-bit), 20 pinsConnector |
| Voltage Supply | 3.3/5.0V (Typ.)(VDD) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| KHG062HVLAP-G000 6.2 inch 640*240 LCD SCREEN DISPLAY | |
KHG062HVLAP-G000 LCD Panel Specification :
