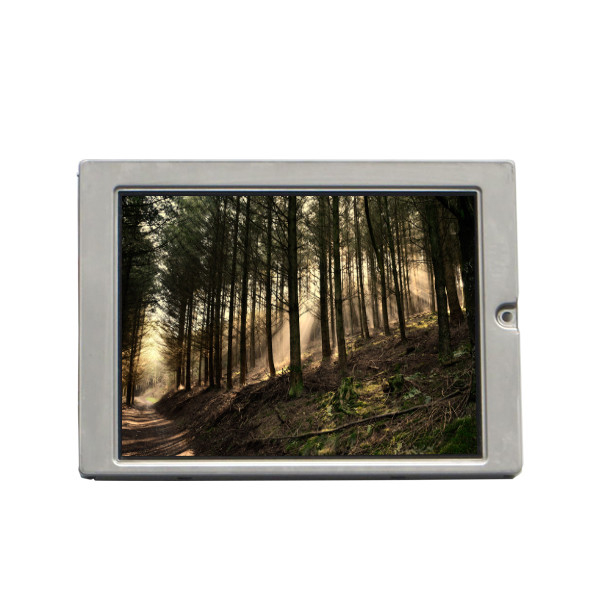

HB050NA-07A 5.0 inch 640*960 LCD Display panel

Brand Name:	Chimei Innolux
Model Number:	HB050NA-07A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HB050NA-07A

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL , COG

Resolution:

640(RGB)×960, DVGA 228PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

71.04(W)×106.56(H) Mm

Designed For:

Mobile Phone

Lamp Type:

No B/L

Frame Rate:

Environment:

Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

HB050NA-07A 5.0 inch 640*960 LCD Display panel

HB050NA-07A LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	HB050NA-07A
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL , COG
Resolution	640(RGB)×960, DVGA 228PPI
Pixel Format	RGB Vertical Stripe
Active Area	71.04(W)×106.56(H) mm
Bezel Opening	-
Outline Dim.	76(H)×119.66(V) ×1.23(D) mm
Treatment	Glare (Haze 0%)
Luminance	0 cd/m²
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	1:30 o'clock
Response Time	10/15 (Typ.)(Tr/Td)
Viewing Angle	75/75/75/75 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.40+0.40 mm
Transmittance	4.53% (Typ.)(with Polarizer)
Support Color	16.7M
Light Source	No B/L
Weight	TBD
Designed For	Mobile Phone
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COG Built-in 1 source chips
Environment	Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C

HB050NA-07A LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

HB050NA-07A LCD Panel Shipping and Package :

HB050NA-07A LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

HB050NA-07A LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

HB050NA-07A LCD Panel FAQ :

Q: How long is the warranty of HB050NA-07A ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of HB050NA-07A ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of HB050NA-07A ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods HB050NA-07A by credit card ?

A: Yes!you can use your credit card through your Paypal account.
