LCD Touch Panel Display

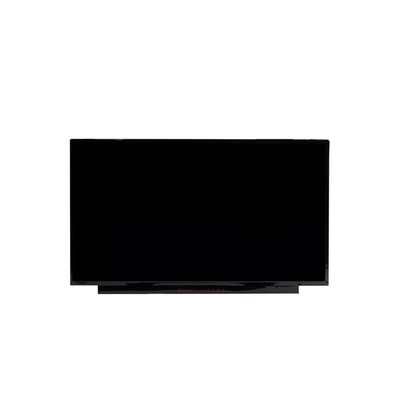

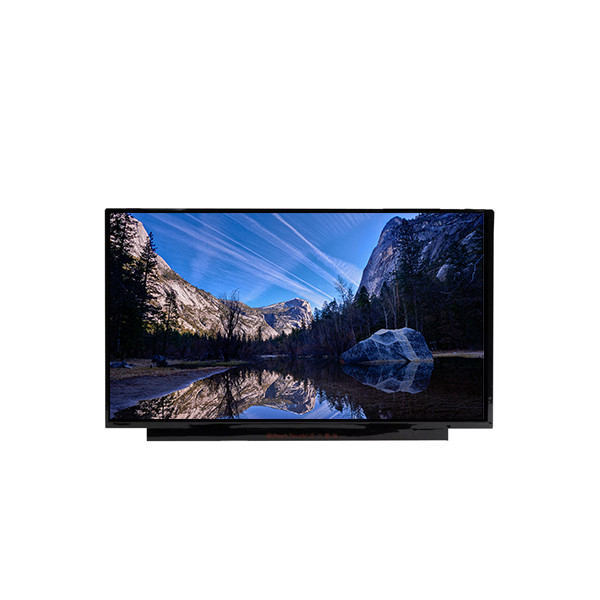

11.6 inch 1366*768 NV116WHM-A20 LCD Screen Panel

All Category

Floor Standing Digital Signage

11.6 inch 1366*768 NV116WHM-A20 LCD Screen Panel

Brand Name:	BOE
Model Number:	NV116WHM-A20
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NV116WHM-A20

Diagonal Size:

11.6"

Resolution:

1366(RGB)×768, WXGA 135PPI

Active Area:

256.125(W)×144(H) Mm

Outline Dim.:

278(W)×171.55(H)×4.9(D)

Treatment:

Hard Coating (7H)

Contrast Ratio:

500 : 1 (Typ.) (TM)

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Application:

Laptop

Touchscreen:

PCAP, Optical Bonding, I²C

Supply Ability:

100000 Unit/Units per Month

Product Description

11.6 inch 1366*768 NV116WHM-A20 LCD Screen Panel

NV116WHM-A20 LCD Panel Product details :

Brand	BOE
Model P/N	NV116WHM-A20
Diagonal Size	11.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 135PPI
Pixel Format	RGB Vertical Stripe
Active Area	256.125(W)×144(H) mm
Bezel Opening	-
Outline(mm)	278(W)×171.55(H)×4.9(D)
Luminance	200 (Typ.)(cd/m²)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Good View at	Symmetry
Color Depth	262K 50% NTSC
Outline Shape	Slim (PCBA Flat, T≤3.2mm)
Refresh Rate	60Hz
Treatment	Hard coating (7H)
Contrast Ratio	500 : 1 (Typ.) (TM)
Work Mode	ADS, Normally Black, Transmissive
Response	30 (Typ.)(Tr+Td) ms
Backlight	6S4P WLED , 15K hours , With LED Driver
Used for	Laptop
Touchscreen	PCAP, Optical Bonding, I²C
Signal Type	eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane), 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

NV116WHM-A20 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

NV116WHM-A20 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

NV116WHM-A20 LCD Panel Shipping and Package :

NV116WHM-A20 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

NV116WHM-A20 LCD Panel FAQ :

Q: Can you test the lcd panel NV116WHM-A20 before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order NV116WHM-A20 ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order NV116WHM-A20 ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd NV116WHM-A20 ?

A: 90 days .
