Name: B080UAB01.0 original 8.0 inch tft lcd touch panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: B080UAB01.0
Availability: InStock

Brand Name:	AUO
Model Number:	B080UAB01.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model P/N:

B080UAB01.0

Diagonal Size:

8.0"

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

1200(RGB)×1920, WUXGA 283PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

107.64(W)×172.224(H) Mm

Support Color:

16.7M 60%NTSC

Lamp Type:

WLED, 15K Hours, W/O Driver

Application:

Pad & Tablet

Frequency:

120Hz+120Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

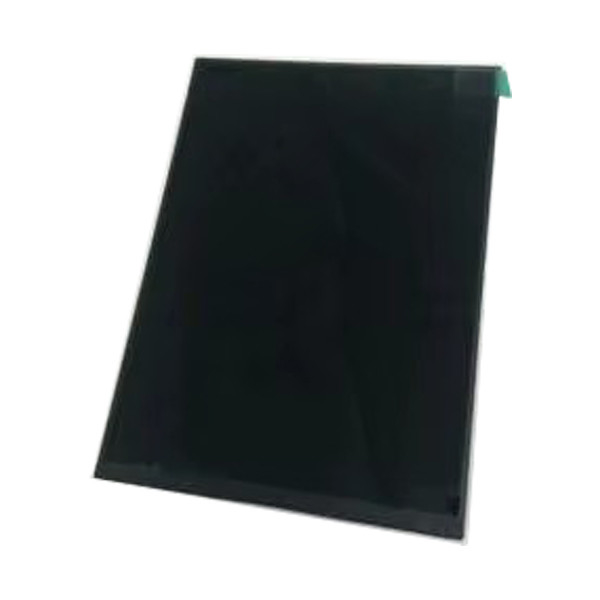

B080UAB01.0 Original 8.0 Inch TFT LCD Touch Panel

Product Specifications

Attribute	Value
Model P/N	B080UAB01.0
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1200(RGB)×1920, WUXGA 283PPI
Pixel Format	RGB Vertical Stripe
Active Area	107.64(W)×172.224(H) mm
Support Color	16.7M 60%NTSC
Lamp Type	WLED, 15K hours, W/O Driver
Application	Pad & Tablet
Frequency	120Hz+120Hz

Detailed Product Information

Brand	AUO
Outline Dimension	120.6(H)×206.6(V)×3.45(D) mm
Treatment	Hard coating (7H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)
Response Time	27 (Typ.)(Tr+Tf)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Touch Panel	On-Cell Touch, I²C
Interface Type	MIPI (4 data lanes), 45 pins Connector
Power Supply	3.3V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

Payment Options

We accept multiple payment methods including PayPal, Western Union, Telegraphic Transfer, and ALI Platform Payment. Payment must be completed within 7 business days to ensure order processing.

Note: Prices do not include customs duty or tax. Buyers are responsible for any additional charges.

Shipping Information

China Post: 15-45 working days
ePacket: 7-20 working days
EMS: 5-15 working days
DHL/UPS: 3-7 working days

Shipping times may vary due to customs clearance and destination factors.

Return Policy

Contact us within 7 days of receiving your package to initiate a return. Items must be returned in original packaging with all accessories for refund eligibility.

Frequently Asked Questions

How long is the warranty?

We offer a 90-day warranty.

How can I track my order?

We provide a tracking number for order monitoring.

Do you accept sample orders?

Yes, sample orders are welcome.

Can I pay via credit card?

Yes, through PayPal account.
