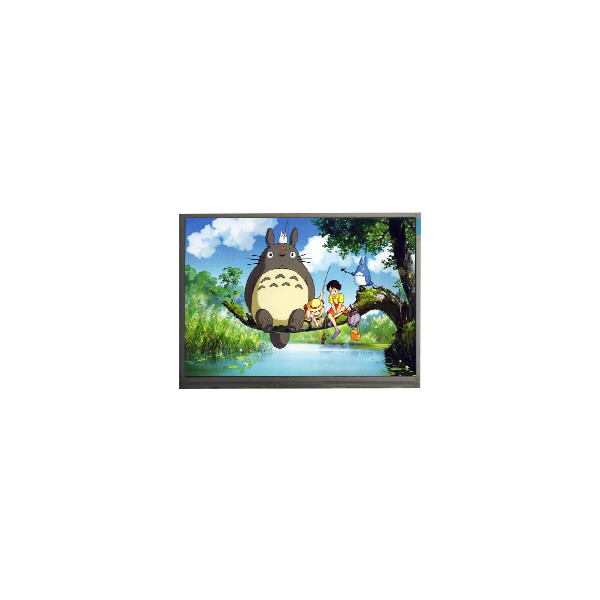

M220ZGE-P02 22.0 inch 1680*1050 LCD Screen Display For Desktop Monitor

Brand Name:	Chimei Innolux
Model Number:	M220ZGE-P02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M220ZGE-P02

Diagonal Size:

22.0"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

1680(RGB)×1050, WSXGA+ 90PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

473.76(W)×296.1(H) Mm

Designed For:

Desktop Monitor

Frame Rate:

Interface Type:

LVDS (2 Ch, 8-bit) , 30 Pins Connector

Environment:

Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

M220ZGE-P02 22.0 inch 1680*1050 LCD Screen Display For Desktop Monitor

M220ZGE-P02 LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	M220ZGE-P02
Diagonal Size	22.0"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1680(RGB)×1050, WSXGA+ 90PPI
Pixel Format	RGB Vertical Stripe
Active Area	473.76(W)×296.1(H) mm
Bezel Opening	-
Outline Dim.	485.26(W)×307.6(H) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	-
View Direction	6 o'clock
Response Time	1.3/1.7 (Typ.)(Tr/Td)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Glass Depth	-
Transmissivity	6.23% (Typ.)(with Polarizer)
Support Color	16.7M 74% NTSC
Light Source	No B/L
Weight	458/504g (Typ./Max.)
Designed For	Desktop Monitor
Frame Rate	75Hz
Touch Panel	Without
Driver IC	COF Built-in 5 source COF + 3 gate COG chips
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

M220ZGE-P02 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

M220ZGE-P02 LCD Panel Shipping and Package :

M220ZGE-P02 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

M220ZGE-P02 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

M220ZGE-P02 LCD Panel FAQ :

Q: Can You declare my order of M220ZGE-P02 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of M220ZGE-P02 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of M220ZGE-P02 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I order M220ZGE-P02 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.
