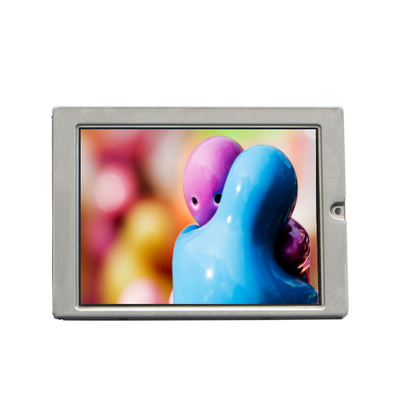

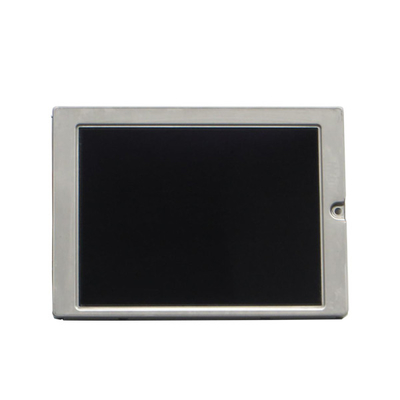

KG047QVLAA-G020 4.7 inch 320*240 LCD Screen Display For Kyocera
Product Details:
Place of Origin: | China |
Brand Name: | Kyocera |
Model Number: | KG047QVLAA-G020 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | KG047QVLAA-G020 | Diagonal Size: | 4.7" |
---|---|---|---|
Panel Type: | STN-LCD, LCM | Resolution: | 320×240, QVGA 84PPI |
Pixel Format: | Rectangle | Active Area: | 95.97(W)×71.97(H) Mm |
Designed For: | Industrial | Frame Rate: | 75Hz |
Product Description
KG047QVLAA-G020 4.7 inch 320*240 LCD Screen Display For Kyocera
KG047QVLAA-G020 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KG047QVLAA-G020 |
Diagonal Size | 4.7" |
Panel Type | STN-LCD, LCM |
Resolution | 320×240, QVGA 84PPI |
Pixel Format | Rectangle |
Active Area | 95.97(W)×71.97(H) mm |
Bezel Opening | 100.6(W)×76.6(H) mm |
Outline Dim. | 122.4(H)×90(V)×9.9(D)mm |
Treatment | Glare (Haze 0%) |
Luminance | 300 cd/m² (Typ.) |
Contrast Ratio | 4:1 (Typ.) (TM) |
View Direction | - |
Response Time | 380/120 (Typ.)(Tr/Td) |
Viewing Angle | 45/45/20/40 (Typ.)(CR≥2) |
Operating Mode | STN, Blue mode (Negative), Transmissive |
Support Color | Monochrome |
Light Source | WLED, 40K hours, W/O Driver |
Weight | 90g (Typ.) |
Designed For | Industrial |
Frame Rate | 75Hz |
Touch Panel | Without |
Interface Type | Parallel Data (1ch, 4-bit), 20 pinsConnector |
Power Supply | 3.3/5.0V (Typ.)(VDD) |
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
KG047QVLAA-G020 4.7 inch 320*240 LCD Screen Display For Kyocera |
KG047QVLAA-G020 LCD Panel Shipping and Package :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: When will my order KG047QVLAA-G020 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd KG047QVLAA-G020 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
