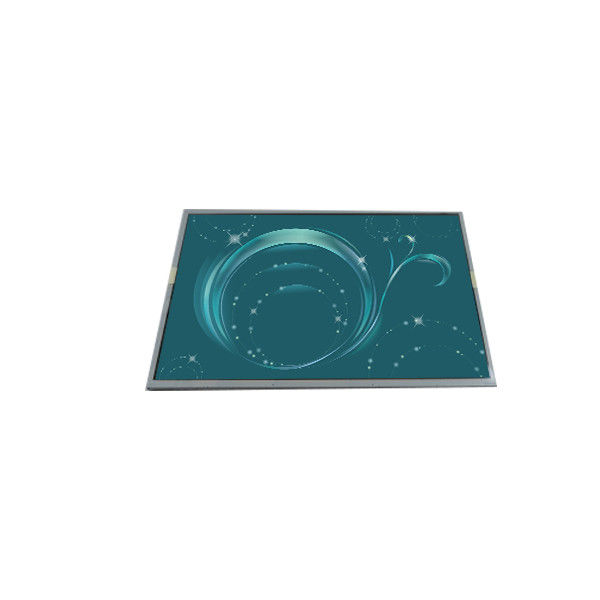

LM236WH1-SLA1 23.6 inch 1366*768 LCD Screen Display For Desktop Monitor

Brand Name:	LG Display
Model Number:	LM236WH1-SLA1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM236WH1-SLA1

Diagonal Size:

23.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 66PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

521.471(W)×293.184(H) Mm

Designed For:

Desktop Monitor

Frame Rate:

Interface Type:

LVDS (1 Ch, 8-bit), 30 PinsConnector

Power Supply:

12.0V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

LM236WH1-SLA1 23.6 inch 1366*768 LCD Screen Display For Desktop Monitor

LM236WH1-SLA1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM236WH1-SLA1
Diagonal Size	23.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 66PPI
Pixel Format	RGB Vertical Stripe
Active Area	521.471(W)×293.184(H) mm
Bezel Opening	525.22(W)×297.22(H) mm
Outline Dim.	544.8(W)×320.5(H)×11.4(D) mm
Treatment	Antiglare (Haze 1%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	7 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	16.7M 73%NTSC
Light Source	WLED, 30K hours, W/O Driver
Weight	2.02Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit), 30 pinsConnector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LM236WH1-SLA1 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

LM236WH1-SLA1 LCD Panel Shipping and Package :

LM236WH1-SLA1 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

LM236WH1-SLA1 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

LM236WH1-SLA1 LCD Panel FAQ :

Q: Can you test the lcd panel LM236WH1-SLA1 before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order LM236WH1-SLA1 ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order LM236WH1-SLA1 ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd LM236WH1-SLA1 ?

A: 90 days .
