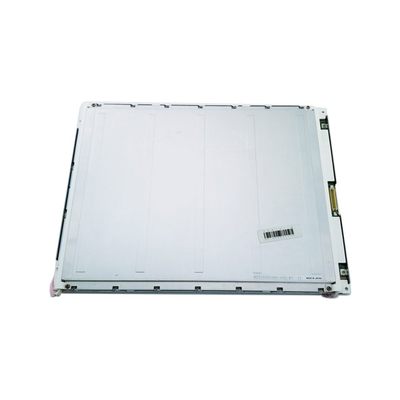

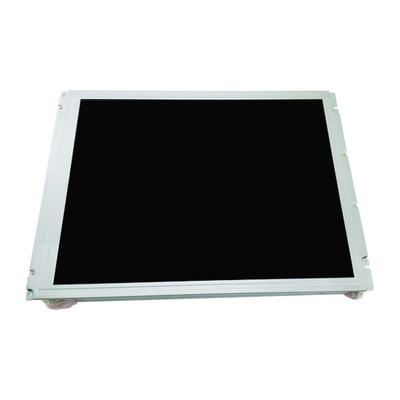

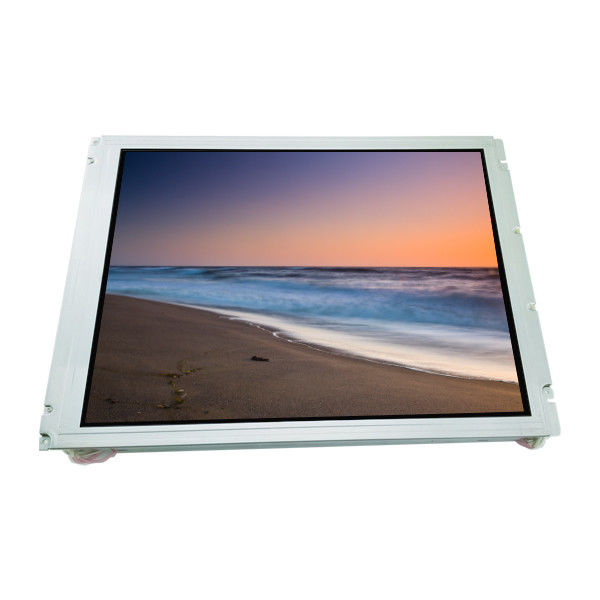

KCT150XG4BA-A09 15.0 inch 1024*768 LCD Screen Display For Kyocera
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCT150XG4BA-A09 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | KCT150XG4BA-A09 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | CSTN-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Application: | Industrial | Backlight: | 4 PcsCCFL, 25K Hours, Without Driver |
Product Description
KCT150XG4BA-A09 15.0 inch 1024*768 LCD Screen Display For Kyocera
KCT150XG4BA-A09 LCD Panel Product details :
| Brand | Kyocera |
| Model P/N | KCT150XG4BA-A09 |
| Diagonal Size | 15.0" |
| Panel Type | CSTN-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.11(W)×231.08(H) mm |
| Outline Size | 355(W)×261(H)×19.5(D) mm |
| Surface | Antiglare |
| Brightness | 120 cd/m² (Typ.) |
| Contrast Ratio | - |
| Viewing Angle | 40/40/20/30 (Typ.)(CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Best View on | - |
| Response Time | 150/50 (Typ.)(Tr/Td) |
| Display Colors | Color 34%NTSC |
| Lamp Type | 4 pcsCCFL, 25K hours, Without Driver |
| Frequency | 120Hz |
| Touch Screen | Without |
| Panel Weight | 2.10Kgs (Typ.) |
| Application | Industrial |

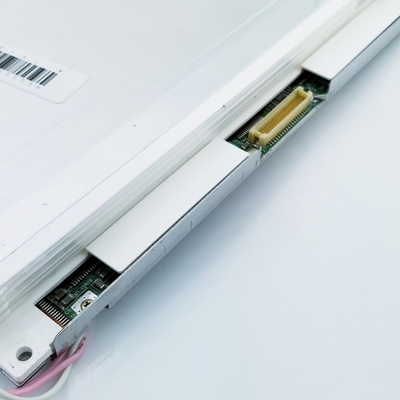

| Signal Interface | Parallel Data (1ch, 8-bit), 40 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 40 °C ;Storage Temp.: -20 ~ 50 °C |
| KCT150XG4BA-A09 15.0 inch 1024*768 LCD Screen Display For Kyocera | |
KCT150XG4BA-A09 LCD Panel Specification :
Quality Assurance:
Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.
KCT150XG4BA-A09 LCD Panel Shipping and Package :
KCT150XG4BA-A09 LCD Panel Shipping Information :
Standard Shipping Practices:
We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.
Processing Time:
We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.
Contact Information Requirement:
To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.
Attention – Expedited Shipping Options:
For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.
KCT150XG4BA-A09 LCD Panel Return Policy :
Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.
In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.
Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.
KCT150XG4BA-A09 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel KCT150XG4BA-A09 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings ?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
