KCS077VG2EA-G43 7.7 inch 640*480 LCD Screen Display For Industrial
Product Details:
Place of Origin: | China |
Brand Name: | Kyocera |
Model Number: | KCS077VG2EA-G43 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | KCS077VG2EA-G43 | Diagonal Size: | 7.7" |
---|---|---|---|
Panel Type: | CSTN-LCD, LCM | Resolution: | 640(RGB)×480, VGA 103PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 157.42(W)×118.06(H) Mm |
Application: | Industrial | Lamp Type: | CCFL [2 Pcs] , 40K Hours , Optional |
Product Description

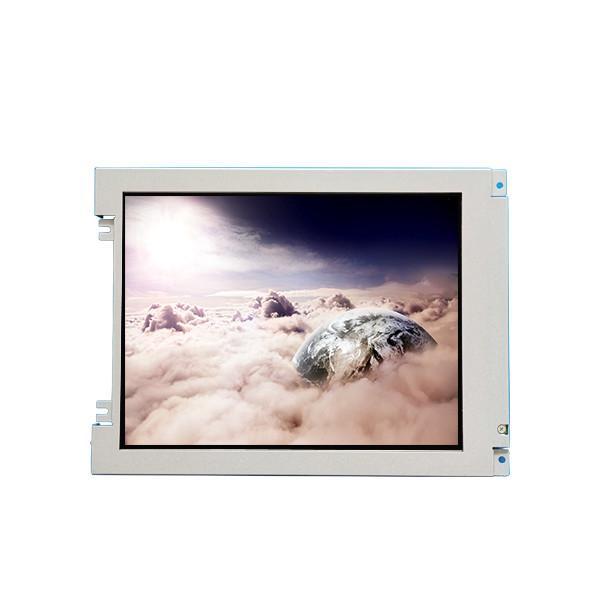

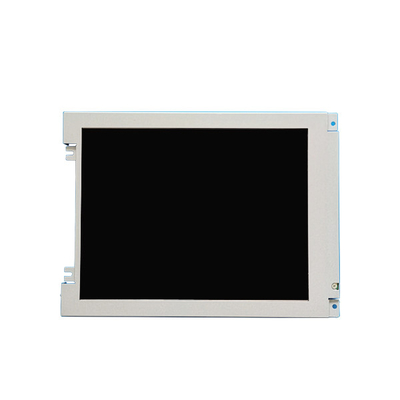

KCS077VG2EA-G43 7.7 inch 640*480 LCD Screen Display For Industrial
KCS077VG2EA-G43 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KCS077VG2EA-G43 |
Diagonal Size | 7.7" |
Panel Type | CSTN-LCD, LCM |
Resolution | 640(RGB)×480, VGA 103PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 157.42(W)×118.06(H) mm |
Bezel Opening | 160.42(W)×121.06(H) mm |
Outline Dim. | 199(W)×147(H)×10.5(D) mm |
Luminance | 200 cd/m² (Typ.) |
Support Color | Color 40% NTSC |
Weight | 330g |
Frame Rate | 75Hz |
Treatment | Glare (Haze 0%) |
Contrast Ratio | 25:1 (Typ.) (TM) |
Response Time | 160/140 (Typ.)(Tr/Td) |
Operating Mode | STN, Normally Black, Transmissive |
Light Source | CCFL [2 pcs] , 40K hours , Optional |
Designed For | Industrial |
Touch Panel | Without |
Interface Type | Parallel Data (1ch, 8-bit)29 pins Connector |
Power Supply | 5.0V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
KCS077VG2EA-G43 7.7 inch 640*480 LCD Screen Display For Industrial |
KCS077VG2EA-G43 LCD Panel Shipping and Package :
Q: What happen if the KCS077VG2EA-G43 received can't work ?
A: Our KCS077VG2EA-G43 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How long the warranty of KCS077VG2EA-G43?
A: 90 days .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the sample order of KCS077VG2EA-G43 ?
A: Yes, Welcome !
