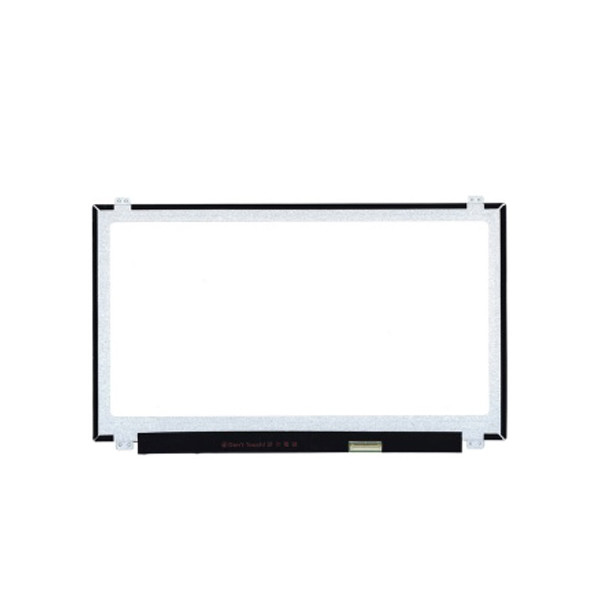

B156XTN07.0 HWGA 15.6 inch 1366*768 LCD Panel Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XTN07.0 HWGA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B156XTN07.0 HWGA | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.232(W)×193.536(H) Mm |
| Support Color: | 262K 45% NTSC | Lamp Type: | WLED , 15K Hours , With LED Driver |
Product Description
B156XTN07.0 HWGA 15.6 inch 1366*768 LCD Panel Display
B156XTN07.0 HWGA LCD Screen Product details :
| Brand | AUO |
| Model P/N | B156XTN07.0 HWGA |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | - |
| Outline(mm) | 359.5(W)×223.8(H)×3.2(D) |
| Luminance | 200 (Typ.)(cd/m²) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K 45% NTSC |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Refresh Rate | 60Hz |
| Treatment | Glare (Haze 0%) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 8 (Typ.)(Tr+Td) ms |
| Backlight | WLED , 15K hours , With LED Driver |
| Used for | Laptop |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane), eDP1.2, 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
