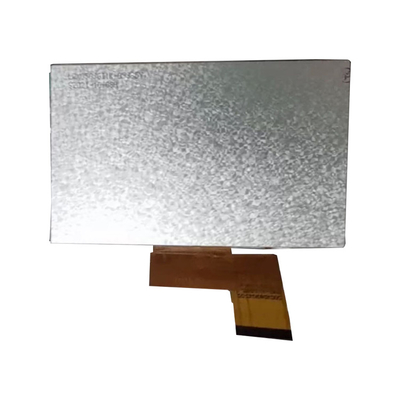

5.0 inch 480*272 HSD050I9W1-C00-0299 LCD display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD050I9W1-C00-0299 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD050I9W1-C00-0299 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×272, WQVGA 109PPI | Active Area: | 110.88(W)×62.832(H) Mm |
| Outline Dim.: | 116(H)×72.45(V)×1.43(D) Mm | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Response Time: | 10/15 (Typ.)(Tr/Td) | Transmittance: | 7.33% (Typ.)(with Polarizer) |
| Designed For: | Automotive Display / Portable Navigation / MP3 PMP | D-IC Detail: | COG Built-in 1 Source Chips |
Product Description

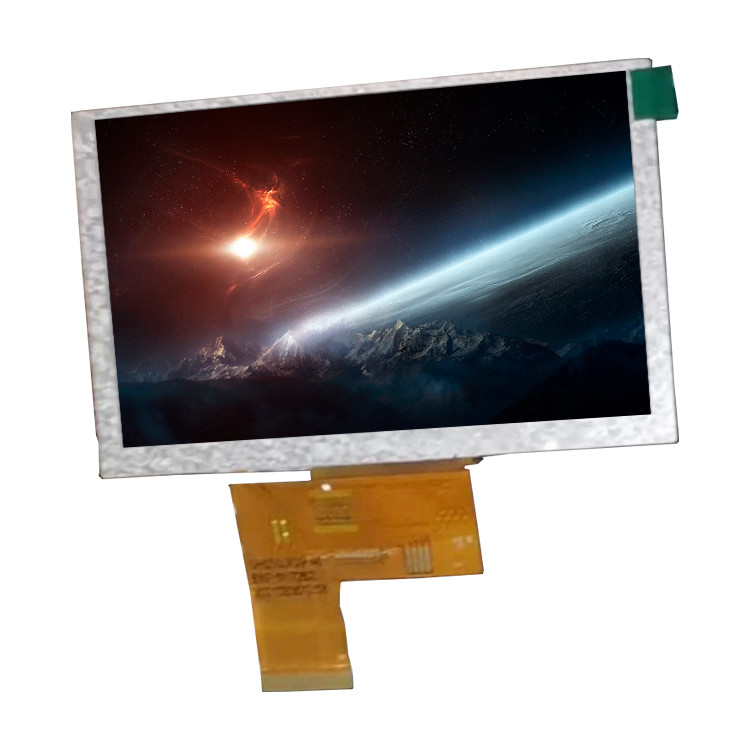

5.0 inch 480*272 HSD050I9W1-C00-0299 LCD display panel
HSD050I9W1-C00-0299 LCD Panel Product details :
| HannStar LCD Screen HSD050I9W1-C00-0299 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD050I9W1-C00-0299 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOG |
| Resolution | 480(RGB)×272, WQVGA 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 110.88(W)×62.832(H) mm |
| Outline Dim. | 116(H)×72.45(V)×1.43(D) mm |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 7.33% (Typ.)(with Polarizer) |
| Support Color | 16.7M 45% NTSC |
| Light Source | No B/L |
| Designed For | Automotive Display / Portable Navigation / MP3 PMP |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 1 source chips |
| Interface Type | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 5.0 inch 480*272 HSD050I9W1-C00-0299 LCD display panel | |
HSD101PFW5-B01-0299 LCD Panel Shipping and Package :
HSD050I9W1-C00-0299 LCD Panel Transport:
Order Processing: Your orders will be shipped within 2-3 business days after the payment has cleared.
Expedited Shipping Option: If you require urgent delivery of this item, please select our Expedited shipping option. We will utilize one of the following courier services: DHL, UPS, or FEDEX, to ensure prompt delivery.
Delivery Monitoring: In the event that you do not receive the item within the specified timeframe, kindly send us a message. We will promptly liaise with the logistics company to expedite the delivery process and ensure that your item reaches you as soon as possible.
HSD050I9W1-C00-0299 LCD Panel Warranty Clause :
1 Year Warranty: YONGS offers a one-year insurance policy from the date of purchase. If the product malfunctions within this period, we will provide repair or replacement with a similar device. Please contact us for return instructions before sending the device back.
30 Days Warranty: We provide insurance coverage for 30 days from the date of purchase. If the item fails within this timeframe, we will undertake maintenance or replace it with a similar device. Please reach out to us for return instructions prior to sending the device back.
90 Days Warranty: YONGS offers a 90-day insurance plan from the date of purchase. Should the product cease functioning within this period, we will arrange for maintenance or replacement with similar devices. Please contact us for return instructions before shipping the item back.
Note: Our warranty does not cover returns. Regardless of the warranty duration, the buyer is responsible for covering the return shipping costs for any items within our warranty coverage.
HSD050I9W1-C00-0299 LCD Panel FAQ :
Q: Can you tested the HSD050I9W1-C00-0299 before shipping ?
A: Of course , our lcd panel HSD050I9W1-C00-0299 was Strictly tested before shipping.
Q: How to order HannStar HSD050I9W1-C00-0299 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd HSD050I9W1-C00-0299 ?
A: 90 days .
Q: What happen if the lcd panel HSD050I9W1-C00-0299 I received can't work ?
A: HSD050I9W1-C00-0299 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
HSD050I9W1-C00-0299 LCD Screen Contact Us :
1 Piece available. The listed price may not be accurate due to rapid fluctuations. Please feel free to make an offer or reach out to us directly for the correct pricing.
Due to the dynamic nature of pricing, the listed price may not reflect the current market conditions. For the most accurate pricing information, we encourage you to inquire with us directly.
As prices for this item are subject to frequent changes, the listed price may not be up-to-date. To obtain the most accurate and current pricing, please contact us for a customized price quotation.
