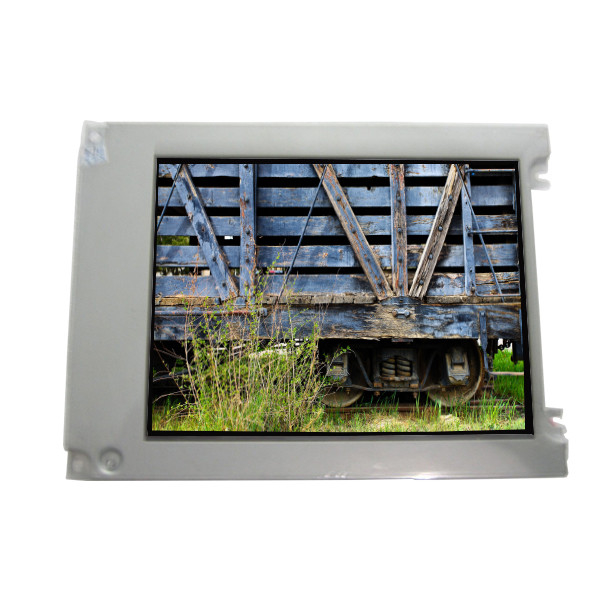

KCS057QV1AJ-G60 5.7 inch 320*240 LCD Screen Module
Product Details:
Place of Origin: | China |
Brand Name: | Kyocera |
Model Number: | KCS057QV1AJ-G60 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | KCS057QV1AJ-G60 | Diagonal Size: | 5.7" |
---|---|---|---|
Panel Type: | CSTN-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
Lamp Type: | 1 Pcs CCFL, 10K Hours, Without Driver | Used For: | Industrial |
Product Description
KCS057QV1AJ-G60 5.7 inch 320*240 LCD Screen Module
KCS057QV1AJ-G60 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KCS057QV1AJ-G60 |
Diagonal Size | 5.7" |
Panel Type | CSTN-LCD, LCM |
Resolution | 320(RGB)×240, QVGA 70PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 115.2(W)×86.4(H) mm |
Bezel Opening | 120.2(W)×91.4(H) mm |
Outline Size | 154.6(W)×114.8(H)×9(D) mm |
Surface | Glare (Haze 0%) |
Brightness | 130 cd/m² (Typ.) |
Contrast Ratio | 40:1 (Typ.) (TM) |
Viewing Angle | 30/30/50/50 (Typ.)(CR≥2) |
Display Mode | STN, Normally Black, Transmissive |
Best View on | - |
Response Time | 390/100 (Typ.)(Tr/Td) |
Display Colors | Color 35%NTSC |
Lamp Type | 1 pcs CCFL, 10K hours, Without Driver |
Frequency | 75Hz |
Touch Screen | - |
Panel Weight | 200g (Typ.) |
Application | Industrial |
Signal Interface | Parallel Data (1ch, 8-bit), 15 pins Connector |
Input Voltage | 5.0V (Typ.) |
Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
KCS057QV1AJ-G60 5.7 inch 320*240 LCD Screen Module |
KCS057QV1AJ-G60 LCD Panel Shipping and Package :
KCS057QV1AJ-G60 LCD Panel FAQ :
Q: Do you accept the sample order of KCS057QV1AJ-G60 ?
A: Yes, Welcome !
Q: How long the warranty of KCS057QV1AJ-G60 ?
A: 90 days .
Q: What happen if the KCS057QV1AJ-G60 received can't work ?
A: Our KCS057QV1AJ-G60 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
