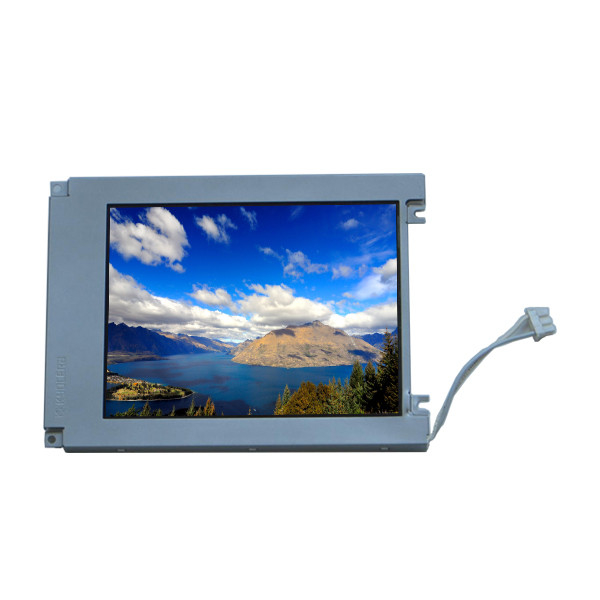

KCG057QV1EA-G000 5.7 inch 320*240 LCD Screen Module For Kyocera
Product Details:
Place of Origin: | China |
Brand Name: | Kyocera |
Model Number: | KCG057QV1EA-G000 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | KCG057QV1EA-G000 | Diagonal Size: | 5.7" |
---|---|---|---|
Panel Type: | CSTN-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
Frame Rate: | 75Hz | Used For: | Industrial |
Product Description
KCG057QV1EA-G000 5.7 inch 320*240 LCD Screen Module For Kyocera
KCG057QV1EA-G000 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KCG057QV1EA-G000 |
Diagonal Size | 5.7" |
Panel Type | CSTN-LCD, LCM |
Resolution | 320(RGB)×240, QVGA 70PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 115.2(W)×86.4(H) mm |
Bezel Opening | 117.2(W)×88.4(H) mm |
Outline(mm) | 154.6 × 114.8× 9 (H×V×D) |
Treatment | Glare (Haze 0%) |
Luminance | 250 cd/m² (Typ.) |
Contrast Ratio | 55 : 1 (Typ.) (TM) |
Viewing Angle | 50/50/20/35 (Typ.)(CR≥2) |
Response | 180/170 (Typ.)(Tr/Td) ms |
Good View at | 6 o'clock |
Work Mode | STN, Normally Black, Transmissive |
Color Depth | Color 38%NTSC |
Backlight | 1 pcs CCFL, 54K hours, No Driver |
Mass | TBD |
Used for | Industrial |
Refresh Rate | 75Hz |
Touchscreen | Without |
Signal Type | Parallel Data (1ch, 8-bit), 15 pinsConnector |
Voltage Supply | 3.3/5.0V (Typ.)(VDD) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
KCG057QV1EA-G000 5.7 inch 320*240 LCD Screen Module For Kyocera |
KCG057QV1EA-G000 LCD Panel Shipping and Package :
KCG057QV1EA-G000 LCD Panel FAQ :
Q: How long is the warranty ofKCG057QV1EA-G000 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of KCG057QV1EA-G000 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order KCG057QV1EA-G000 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for KCG057QV1EA-G000 ?
A: Of course!sample order is welcome !
