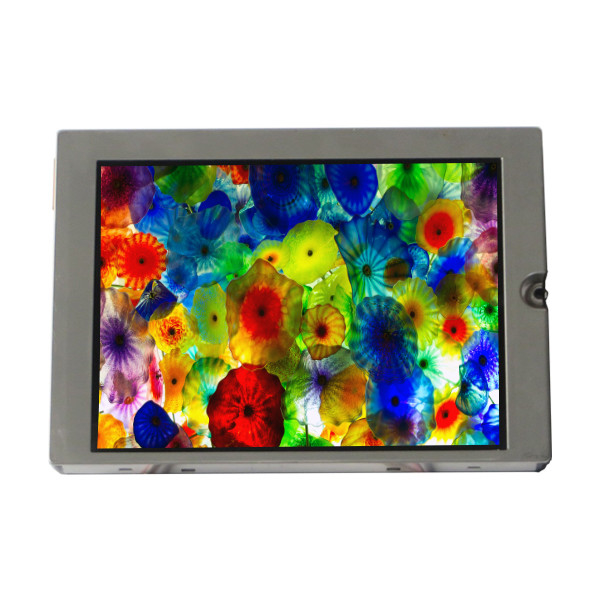

KCG057QV1DC-G770 5.7 inch 75Hz 320*240 LCD Screen Module
Product Details:
Place of Origin: | China |
Brand Name: | Kyocera |
Model Number: | KCG057QV1DC-G770 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | KCG057QV1DC-G770 | Diagonal Size: | 5.7" |
---|---|---|---|
Panel Type: | CSTN-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
Contrast Ratio: | 60:1 (Typ.) (TM) | Used For: | Industrial |
Product Description
KCG057QV1DC-G770 5.7 inch 75Hz 320*240 LCD Screen Module
KCG057QV1DC-G770 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KCG057QV1DC-G770 |
Diagonal Size | 5.7" |
Panel Type | CSTN-LCD, LCM |
Resolution | 320(RGB)×240, QVGA 70PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 115.2(W)×86.4(H) mm |
Bezel Opening | 119.4(W)×90.6(H) mm |
Outline Dim. | 144(W)×104.8(H)×15.3(D) mm |
Treatment | Antiglare, Hard coating (2H) |
Luminance | 300 cd/m² (Typ.) |
Contrast Ratio | 60:1 (Typ.) (TM) |
View Direction | - |
Response Time | 250/200 (Typ.)(Tr/Td) |
Viewing Angle | 55/55/60/70 (Typ.)(CR≥2) |
Operating Mode | STN, Normally Black, Transmissive |
Support Color | Color 58%NTSC |
Light Source | CCFL [1 pcs], 75K hours, Optional |
Weight | 220g (Typ.) |
Designed For | Industrial |
Frame Rate | 75Hz |
Touch Panel | 4-wire Resistive Touch |
Interface Type | Parallel Data (1ch, 8-bit), 20 pinsConnector |
Power Supply | 3.3/5.0V (Typ.)(VDD) |
Environment | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
KCG057QV1DC-G770 5.7 inch 75Hz 320*240 LCD Screen Module |
KCG057QV1DC-G770 LCD Panel Shipping and Package :
KCG057QV1DC-G770 LCD Panel FAQ :
Q: If I order KCG057QV1DC-G770 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for KCG057QV1DC-G770 ?
A: Of course!sample order is welcome !
Q: How long is the warranty of KCG057QV1DC-G770 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of KCG057QV1DC-G770 ?
A: Of course!If you make a large order, we will give you a discount.
