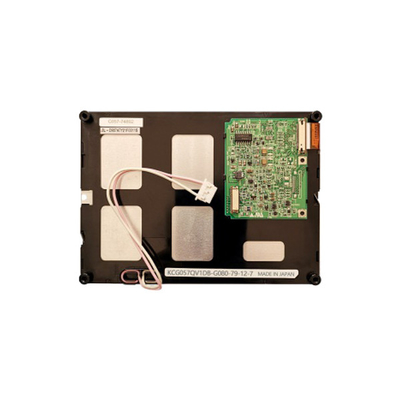

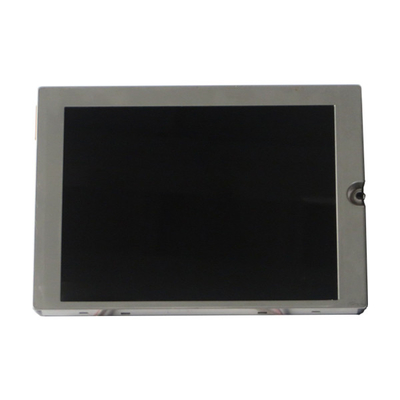

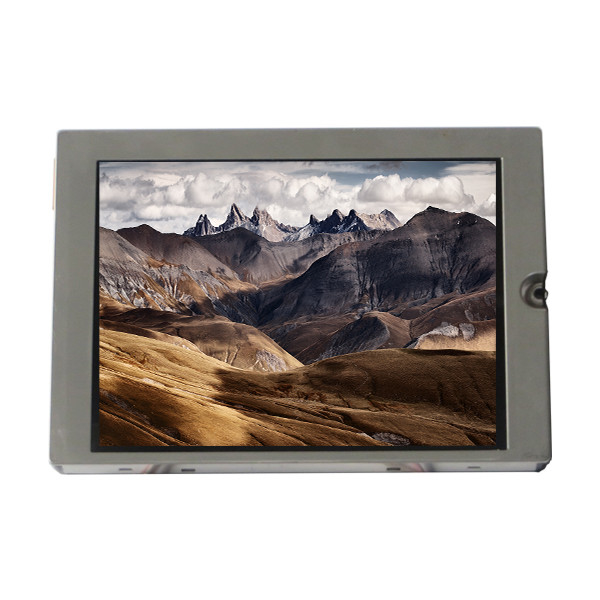

KCG057QV1DB-G080 5.7 inch 75Hz LCD Screen For Kyocera
Product Details:
Place of Origin: | China |
Brand Name: | Kyocera |
Model Number: | KCG057QV1DB-G080 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | KCG057QV1DB-G080 | Diagonal Size: | 5.7" |
---|---|---|---|
Panel Type: | CSTN-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
Contrast Ratio: | 60:1 (Typ.) (TM) | Used For: | Industrial |
Product Description
KCG057QV1DB-G080 5.7 inch 75Hz LCD Screen For Kyocera
KCG057QV1DB-G080 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KCG057QV1DB-G080 |
Diagonal Size | 5.7" |
Panel Type | CSTN-LCD, LCM |
Resolution | 320(RGB)×240, QVGA 70PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 115.2(W)×86.4(H) mm |
Bezel Opening | 119.4(W)×90.6(H) mm |
Outline Dim. | 144(W)×104.8(H)×13.2(D) mm |
Treatment | - |
Luminance | - |
Contrast Ratio | 60:1 (Typ.) (TM) |
View Direction | - |
Response Time | 180/170 (Typ.)(Tr/Td) |
Viewing Angle | 50/50/20/35 (Typ.)(CR≥2) |
Operating Mode | STN, Normally Black, Transmissive |
Support Color | Color |
Light Source | CCFL [1 pcs], 75K hours, Optional |
Weight | - |
Designed For | Industrial |
Frame Rate | 75Hz |
Touch Panel | Without |
Interface Type | Parallel Data (1ch, 8-bit), 20 pinsConnector |
Power Supply | 3.3/5.0V (Typ.)(VDD) |
Environment | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
KCG057QV1DB-G080 5.7 inch 75Hz LCD Screen For Kyocera |
KCG057QV1DB-G080 LCD Panel Shipping and Package :
KCG057QV1DB-G080 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
Q: Do you accept the KCG057QV1DB-G080 sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
