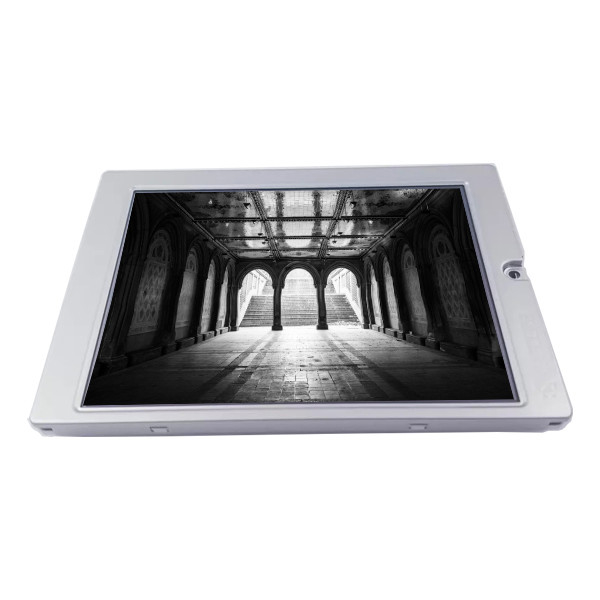

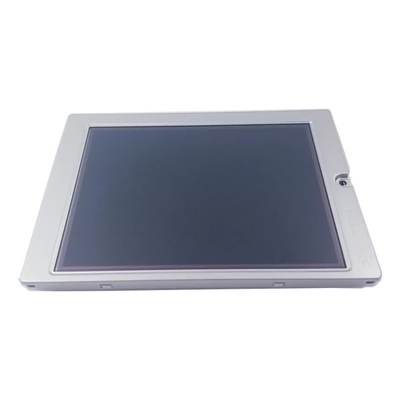

KCG057QV1DB-G02 5.7 inch 350 cd/m2 LCD Screen For Kyocera
Product Details:
Place of Origin: | China |
Brand Name: | Kyocera |
Model Number: | KCG057QV1DB-G02 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | KCG057QV1DB-G02 | Diagonal Size: | 5.7" |
---|---|---|---|
Panel Type: | CSTN-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 115.18(W)×86.38(H) Mm |
Contrast Ratio: | 55:1 (Typ.) (TM) | Used For: | Industrial |
Product Description
KCG057QV1DB-G02 5.7 inch 350 cd/m2 LCD Screen For Kyocera
KCG057QV1DB-G02 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KCG057QV1DB-G02 |
Diagonal Size | 5.7" |
Panel Type | CSTN-LCD, LCM |
Resolution | 320(RGB)×240, QVGA 70PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 115.18(W)×86.38(H) mm |
Bezel Opening | - |
Outline Size | 144(W)×104.8(H)×13.2(D) mm |
Surface | - |
Brightness | 350 cd/m² (Typ.) |
Contrast Ratio | 55:1 (Typ.) (TM) |
Viewing Angle | - |
Display Mode | STN, Normally Black, Transmissive |
Best View on | - |
Response Time | - |
Display Colors | Color |
Lamp Type | 1 pcsCCFL, 75K hours |
Panel Weight | - |
Application | Industrial |
Environment | Operating Temp.: 0 ~ 60 °C ;- |
KCG057QV1DB-G02 5.7 inch 350 cd/m2 LCD Screen For Kyocera |
KCG057QV1DB-G02 LCD Panel Shipping and Package :
KCG057QV1DB-G02 LCD Panel FAQ :
Q: How to order lcd panel KCG057QV1DB-G02 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of KCG057QV1DB-G02 ?
A: NEW Product warranty is 90 days.
