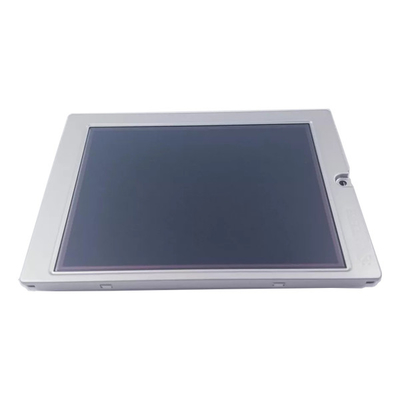

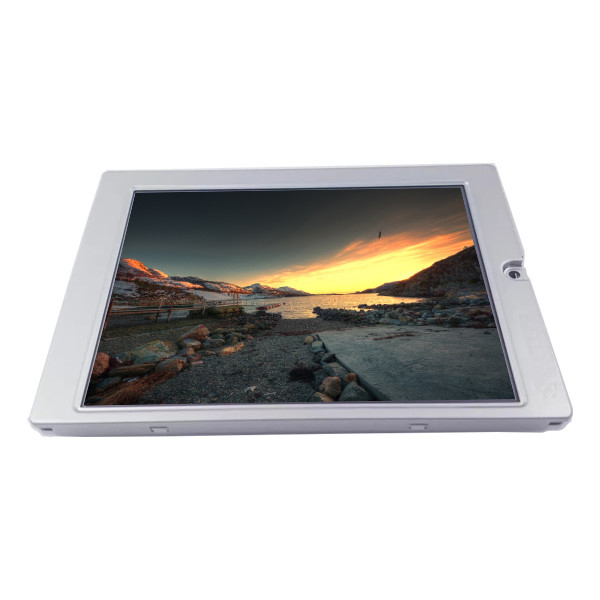

KCG047QVLAE-G000 4.7 inch WLED LCD Screen For Kyocera
Product Details:
Place of Origin: | China |
Brand Name: | Kyocera |
Model Number: | KCG047QVLAE-G000 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | KCG047QVLAE-G000 | Diagonal Size: | 4.7" |
---|---|---|---|
Panel Type: | CSTN-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 84PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 95.98(W)×71.98(H) Mm |
Contrast Ratio: | 30:1 (Typ.) (TM) | Used For: | Industrial |
Product Description
KCG047QVLAE-G000 4.7 inch WLED LCD Screen For Kyocera
KCG047QVLAE-G000 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KCG047QVLAE-G000 |
Diagonal Size | 4.7" |
Panel Type | CSTN-LCD, LCM |
Resolution | 320(RGB)×240, QVGA 84PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 95.98(W)×71.98(H) mm |
Bezel Opening | 100.6(W)×76.6(H) mm |
Outline Size | 122.4(W)×90(H)×12(D) mm |
Brightness | 90 cd/m² (Typ.) |
Viewing Angle | 50/50/20/30 (Typ.)(CR≥2) |
Best View on | - |
Display Colors | Color 30%NTSC |
Frequency | 75Hz |
Weight | 120g |
Surface | Glare (Haze 0%) |
Contrast Ratio | 30:1 (Typ.) (TM) |
Display Mode | STN, Normally Black, Transmissive |
Response Time | 320/170 (Typ.)(Tr/Td) |
Lamp Type | WLED , 50K hours , With LED Driver |
Touch Screen | 4-wire Resistive Touch |
Application | Industrial |
Signal Interface | Parallel Data (1ch, 8-bit), 20 pinsConnector |
Input Voltage | 3.3/5.0V (Typ.)(VDD) |
Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
KCG047QVLAE-G000 4.7 inch WLED LCD Screen For Kyocera |
KCG047QVLAE-G000 LCD Panel Shipping and Package :
KCG047QVLAE-G000 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of KCG047QVLAE-G000 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel KCG047QVLAE-G000 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
