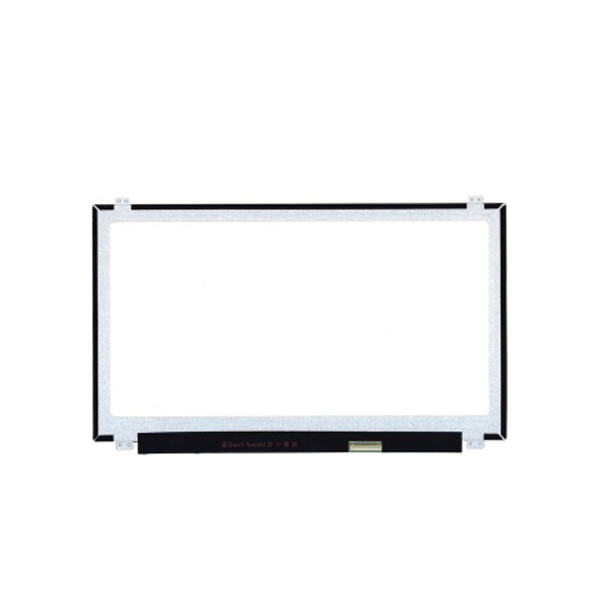

B156XTN07.0 HW5A 15.6 inch tft lcd panel replacement
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XTN07.0 HW5A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B156XTN07.0 HW5A | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.232(W)×193.536(H) Mm |
| Support Color: | 262K 45%NTSC | Light Source: | WLED, 15K Hours, With LED Driver |
| Designed For: | Laptop | Frame Rate: | 60Hz |
Product Description
B156XTN07.0 HW5A 15.6 inch tft lcd panel replacement
B156XTN07.0 HW5A LCD Screen Product details :
| Brand | AUO |
| Model P/N | B156XTN07.0 HW5A |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | - |
| Outline(mm) | 359.5 × 223.8× 3.2 (H×V×D) |
| Treatment | Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45%NTSC |
| Backlight | WLED, 15K hours, With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane), eDP1.2, 30 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B156XTN07.0 HW5A LCD Screen Payment :
We accept multiple payment methods, including PayPal, Western Union Remittance, TT (Telegraphic Transfer), ALI Platform Payment, and others. Please choose the option that is most convenient for you.
It is essential to make the payment within 7 business days to ensure a swift processing of your order. Failure to complete the payment within the stipulated timeframe may result in your order being canceled or considered forfeited after 21 business days.
Please note that our prices do not include any customs duty or tax. Any additional charges, such as customs duty or tax, will be the responsibility of the buyer.
We suggest familiarizing yourself with the customs regulations of your country to estimate any potential additional fees that may apply.If you have any further questions or concerns regarding payment or customs duty, please feel free to reach out to us. We are here to assist you.
B156XTN07.0 HW5A LCD Screen Shipping and Package :
B156XTN07.0 HW5A LCD Screen Shipping :
China Post: China Post is a reliable and cost-effective shipping option. It may take longer for the package to reach its destination, typically around 15-45 working days, depending on the shipping location.
ePacket: ePacket is an economical shipping service specifically designed for lightweight and low-value items. It is faster than China Post, with an estimated delivery time of 7-20 working days.
EMS: EMS is an expedited shipping option that provides fast and reliable door-to-door delivery. The estimated delivery time is around 5-15 working days.
DHL, UPS, and other courier services: These express shipping options are known for their speed and efficiency. Packages shipped through these services usually arrive within 3-7 working days.
Please note that shipping times may vary depending on factors such as customs clearance, holidays, and the shipping destination. It is always recommended to track your parcel and contact us if you have not received it within the specified time frame.
If you have any specific shipping preferences or requirements, please let us know, and we will do our best to accommodate them.
B156XTN07.0 HW5A LCD Screen Return :
We appreciate your purchase and want to ensure a smooth return process for you.
Before proceeding with the return, we kindly request that you contact us first. It's important that we guide you through the necessary steps and provide you with a return authorization number.
As per our return policy, we require the buyer to notify us of any returned items within 7 days after receiving the package. To ensure that your request is accepted, please make sure to inform us within this timeframe. Unfortunately, we reserve the right to refuse any return request that is communicated to us after this 7-day period.
To ensure a successful return, please ensure that the item is returned to us in its original packaging and in good condition. This means that all accessories, manuals, and any other included items should be returned along with the product itself. We cannot offer a refund or exchange for items that are returned without their original packaging or in a damaged or impaired condition.
B156XTN07.0 HW5A LCD Screen FAQ :
Q: Can I pay my order of B156XTN07.0 HW5A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of B156XTN07.0 HW5A ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of B156XTN07.0 HW5A ?
A: Of course!sample order is welcome !
