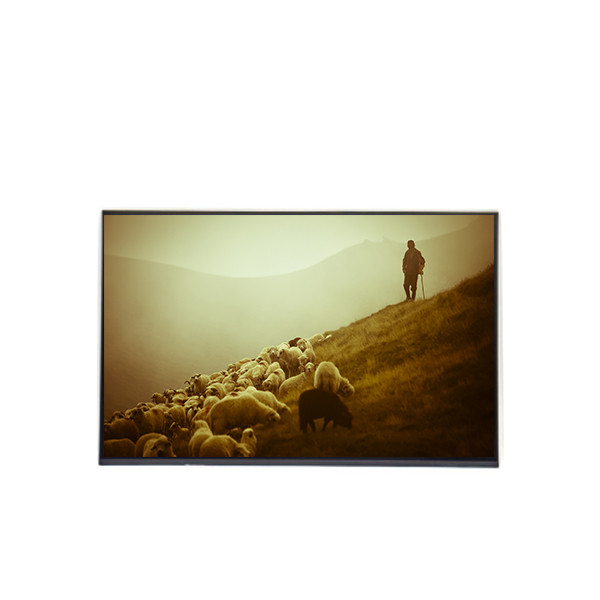

B170WP04 V0 17.0 inch LCD Display Panel 1440*900 LCD Screen

B170WP04 V0 17.0 inch LCD Display Panel 1440*900 LCD Screen

Brand Name: AUO
Model Number: B170WP04 V0
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
CHINA
Model P/N:
B170WP04 V0
Diagonal Size:
17.0"
Panel Type:
A-Si TFT-LCD, LCM
Resolution:
1440(RGB)×900, WXGA+ 99PPI
Pixel Format:
RGB Vertical Stripe
Active Area:
367.2(W)×229.5(H) Mm
Support Color:
262K 72% NTSC
Light Source:
CCFL [2 Pcs], W/O Driver
Designed For:
Laptop
Frame Rate:
60Hz
Supply Ability:
100000 Unit/Units per Month
Product Description

B170WP04 V0 17.0 inch LCD Display Panel 1440*900 LCD Screen


B170WP04 V0 LCD Screen Product details :



Brand AUO
Model P/N B170WP04 V0
Diagonal Size 17.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1440(RGB)×900, WXGA+ 99PPI
Pixel Format RGB Vertical Stripe
Active Area 367.2(W)×229.5(H) mm
Bezel Opening 370.9(W)×233.2(H) mm
Outline Dim. 382.2(W)×246.8(H)×9(D) mm
Luminance 500 cd/m² (Typ.)
View Direction 6 o'clock
Viewing Angle 70/70/60/60 (Typ.)(CR≥10)
Support Color 262K 72% NTSC
Form Style Wedge (PCBA Bent, T≥5.2mm)
Frame Rate 60Hz
Treatment Glare (Haze 0%)
Contrast Ratio 700:1 (Typ.) (TM)
Response Time 6/2 (Typ.)(Tr/Td)
Operating Mode TN, Normally White, Transmissive
Light Source CCFL [2 pcs], W/O Driver
Designed For Laptop
Touch Panel Without
Interface Type LVDS (2 ch, 6-bit)30 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C


B170WP04 V0 LCD Screen Payment :


We accept multiple payment methods, including PayPal, Western Union Remittance, TT (Telegraphic Transfer), ALI Platform Payment, and others. Please choose the option that is most convenient for you.


It is essential to make the payment within 7 business days to ensure a swift processing of your order. Failure to complete the payment within the stipulated timeframe may result in your order being canceled or considered forfeited after 21 business days.


Please note that our prices do not include any customs duty or tax. Any additional charges, such as customs duty or tax, will be the responsibility of the buyer.


We suggest familiarizing yourself with the customs regulations of your country to estimate any potential additional fees that may apply.If you have any further questions or concerns regarding payment or customs duty, please feel free to reach out to us. We are here to assist you.


B170WP04 V0 LCD Screen Shipping and Package :
B170WP04 V0 17.0 inch LCD Display Panel 1440*900 LCD Screen 0

B170WP04 V0 LCD Screen Shipping :



China Post: China Post is a reliable and cost-effective shipping option. It may take longer for the package to reach its destination, typically around 15-45 working days, depending on the shipping location.



ePacket: ePacket is an economical shipping service specifically designed for lightweight and low-value items. It is faster than China Post, with an estimated delivery time of 7-20 working days.



EMS: EMS is an expedited shipping option that provides fast and reliable door-to-door delivery. The estimated delivery time is around 5-15 working days.



DHL, UPS, and other courier services: These express shipping options are known for their speed and efficiency. Packages shipped through these services usually arrive within 3-7 working days.



Please note that shipping times may vary depending on factors such as customs clearance, holidays, and the shipping destination. It is always recommended to track your parcel and contact us if you have not received it within the specified time frame.



If you have any specific shipping preferences or requirements, please let us know, and we will do our best to accommodate them.



B170WP04 V0 LCD Screen Return :



We appreciate your purchase and want to ensure a smooth return process for you.



Before proceeding with the return, we kindly request that you contact us first. It's important that we guide you through the necessary steps and provide you with a return authorization number.



As per our return policy, we require the buyer to notify us of any returned items within 7 days after receiving the package. To ensure that your request is accepted, please make sure to inform us within this timeframe. Unfortunately, we reserve the right to refuse any return request that is communicated to us after this 7-day period.



To ensure a successful return, please ensure that the item is returned to us in its original packaging and in good condition. This means that all accessories, manuals, and any other included items should be returned along with the product itself. We cannot offer a refund or exchange for items that are returned without their original packaging or in a damaged or impaired condition.


B170WP04 V0 LCD Screen FAQ :



Q: Can you tested the B170WP04 V0 before shipping ?

A: Of course , our lcd panel B170WP04 V0 was Strictly tested before shipping.



Q: How to order B170WP04 V0 ?

A: We accept T/T , Paypal , western union .



Q: What happen if the lcd panel B170WP04 V0 received can't work ?

A:B170WP04 V0 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .



Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
