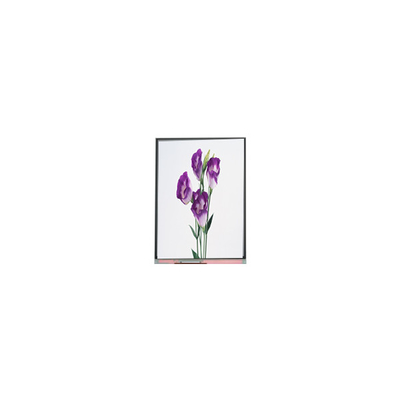

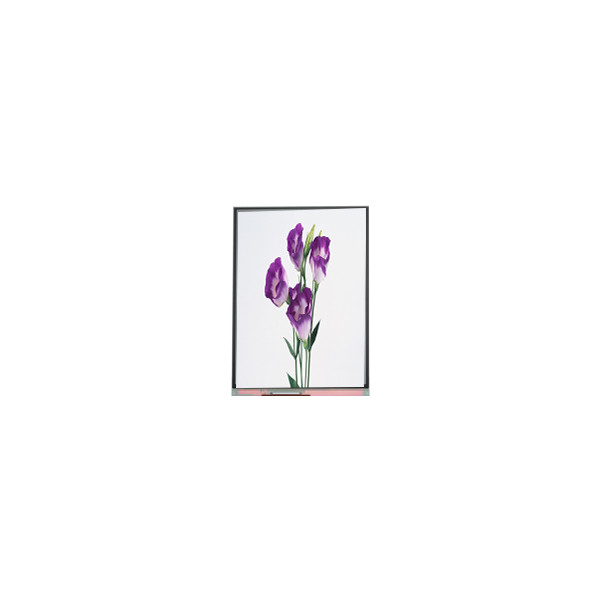

C057SWR1-1 5.7 inch 720*1440 LCD Screen Panel For Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | C057SWR1-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C057SWR1-1 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1440 282PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 64.8(W)×129.6(H) Mm |
| Bezel Opening: | Without Polarizer | Outline (mm): | 66.8×135.2×0.8 (H×V×D) |
| Contrast Ratio: | 1500 : 1 (Typ.) (TM) | Application: | Mobile Phone |
Product Description
C057SWR1-1 5.7 inch 720*1440 LCD Screen Panel For Phone
C057SWR1-1 LCD Panel Product details :
| Brand | IVO |
| Model P/N | C057SWR1-1 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1440 282PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.8(W)×129.6(H) mm |
| Bezel Opening | - |
| Outline (mm) | 66.8×135.2×0.8 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 35 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Glass Thickness | 0.20+0.20 mm |
| Transmissivity | 4.1% (Typ.) |
| Color Depth | 16.7M 70%NTSC |
| Backlight | No B/L |
| Mass | 17.9/19.7g (Typ./Max.) |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | Without |
| Driver IC list | Suggest COG ICN9706, ST7703 |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Discount 5.7 inch TFT LCD Display Module C057SWR1-1 | |
In the process of expanding the development of LCD screens, technological level and manufacturing process are crucial. Therefore, the concept company focuses on the research and manufacturing of LCD display technology, and continuously strengthens cooperation with excellent domestic and foreign suppliers to improve product quality and stability, and meet the diverse needs of the market.
The company has always regarded customer satisfaction as its core goal and is committed to providing high-quality, cost-effective, and service-oriented products and services. Our service team will provide customers with comprehensive pre-sales consultation, in sales support, and after-sales service with a professional attitude and technical level, so that customers can enjoy comprehensive and considerate services.
In the future, the concept company will continue to strengthen research and development investment, optimize product structure, and continuously improve product performance and reliability. At the same time, we will actively explore overseas markets, expand our international business, and provide customers with higher quality services and support.
C057SWR1-1 LCD Panel Shipping and Package :
Q: Can you test the lcd panel C057SWR1-1 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order C057SWR1-1 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order C057SWR1-1 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd C057SWR1-1 ?
A: 90 days .
