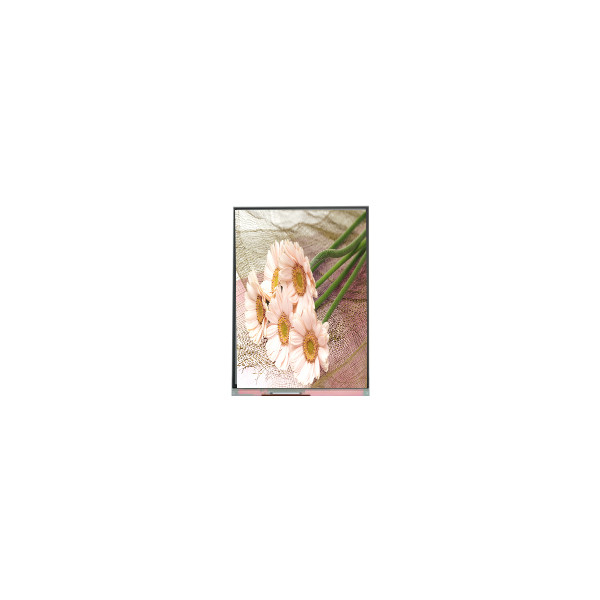

C057SWR1-0 5.7 inch 720*1440 LCD Screen Panel
  • name

C057SWR1-0 5.7 inch 720*1440 LCD Screen Panel

Brand Name: IVO
Model Number: C057SWR1-0
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model Name:
C057SWR1-0
Diagonal Size:
5.7"
Panel Type:
A-Si TFT-LCD, CELL, Full Cell
Resolution:
720(RGB)×1440 282PPI
Pixel Format:
RGB Vertical Stripe
Active Area:
64.8(W)×129.6(H) Mm
Luminance:
0 Cd/m²
Outline (mm):
66.8×135.2×0.4 (H×V×D)
Contrast Ratio:
1500 : 1 (Typ.) (TM)
Application:
Mobile Phone
Supply Ability:
100000 Unit/Units per Month
Product Description

C057SWR1-0 5.7 inch 720*1440 LCD Screen Panel

C057SWR1-0 LCD Panel Product details :


BrandIVO
Model P/NC057SWR1-0
Diagonal Size5.7"
Panel Typea-Si TFT-LCD, CELL, Full Cell
Resolution720(RGB)×1440 282PPI
Pixel FormatRGB Vertical Stripe
Active Area64.8(W)×129.6(H) mm
Bezel Opening-
Outline (mm)66.8×135.2×0.4 (H×V×D)
TreatmentWithout Polarizer
Luminance0 cd/m²
Contrast Ratio1500 : 1 (Typ.) (TM)
Viewing Angle85/85/85/85 (Typ.)(CR≥10)
Response35 (Typ.)(Tr+Td) ms
Good View atSymmetry
Work ModeIPS, Normally Black, Transmissive
Glass Thickness0.20+0.20 mm
Transmissivity4.1% (Typ.)
Color Depth72%NTSC
BacklightNo B/L
Mass8.97/9.87g (Typ./Max.)
Used forMobile Phone
Refresh Rate-
TouchscreenWithout
Driver IC listSuggest COG ICN9706, ST7703
Max. RatingsStorage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
TFT LCD Panel C057SWR1-0 5.7 inch LCD Screen Portable Phone


C057SWR1-0 LCD Panel Specification :

Quality Assurance:
Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.



C057SWR1-0 LCD Panel Shipping and Package :
C057SWR1-0 5.7 inch 720*1440 LCD Screen Panel 0


C057SWR1-0 LCD Panel Shipping Information :

1) All of our products undergo testing before shipment. So you can rest assured of the quality of our products

2) All panels are packaged in new sturdy cardboard boxes for long-distance transportation.

3) Accept delivery: FEDEX,DHL,UPS,TNT,EMS, Air and sea freight

4) Delivery time: Due to our large inventory, orders will only take 1-3 working days after receiving payment and will be delivered using third-party delivery services or upon customer request.

C057SWR1-0 LCD Panel After receiving the goods :

1. Ensure that the motherboard is working properly and then install it correctly.

2.In the video, you can see models with our company logo (YONGS) and fragile labels

3.If you cannot use it correctly according to the operation, we will process the answer as soon as possible.

4.As long as it is confirmed to be our reason, our company will take responsibility.

C057SWR1-0 LCD Panel FAQ :


Q: Can I pay my goods C057SWR1-0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.

Q: How do you ship my goods C057SWR1-0 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.

Q: Can you give me a discount if I need a large quantity of C057SWR1-0 ?
A: Of course!If you make a large order, we will give you a discount.

Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.

Q: How long will I receive my goods of C057SWR1-0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
