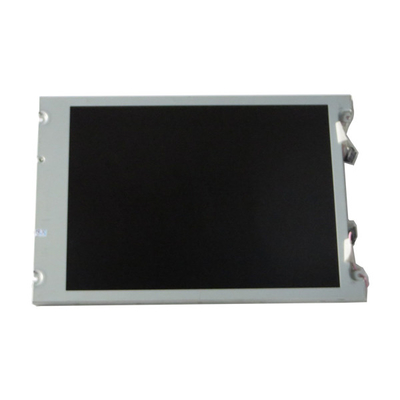

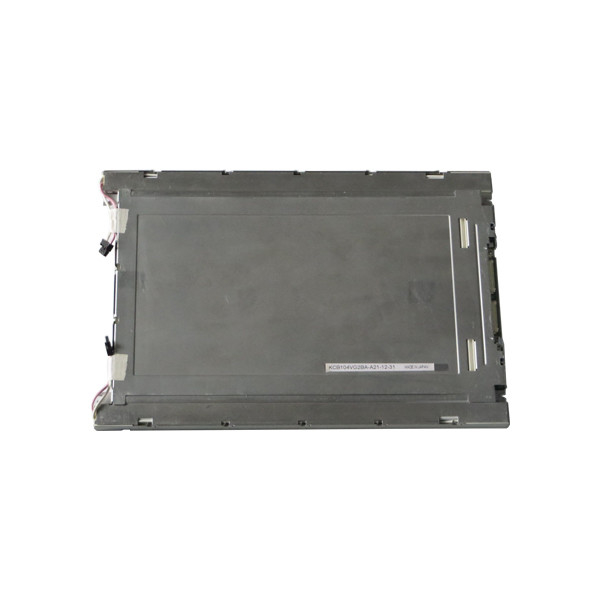

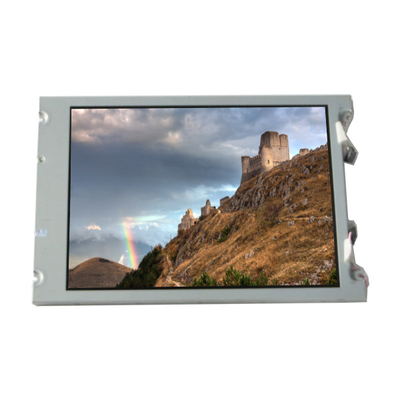

KCB104VG2BA-A21 10.4 inch 640*480 LCD Screen Display
Product Details:
Place of Origin: | China |
Brand Name: | Kyocera |
Model Number: | KCB104VG2BA-A21 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | KCB104VG2BA-A21 | Diagonal Size: | 10.4" |
---|---|---|---|
Panel Type: | CSTN-LCD, LCM | Resolution: | 640(RGB)×480, VGA 76PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 211.2(W)×158.4(H) Mm |
Bezel Opening: | 217.2(W)×164.4(H) Mm | Outline(mm): | 264(H)×183(V)×9(D) Mm |
Contrast Ratio: | 20:1 (Typ.) (TM) | Application: | Industrial |
Product Description
KCB104VG2BA-A21 10.4 inch 640*480 LCD Screen Display
KCB104VG2BA-A21 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KCB104VG2BA-A21 |
Diagonal Size | 10.4" |
Panel Type | CSTN-LCD, LCM |
Resolution | 640(RGB)×480, VGA 76PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 211.2(W)×158.4(H) mm |
Bezel Opening | 217.2(W)×164.4(H) mm |
Outline Size | 264(W)×183(H)×9(D) mm |
Surface | Antiglare |
Brightness | 150 cd/m² (Typ.) |
Contrast Ratio | 20:1 (Typ.) (TM) |
Viewing Angle | 45/45/35/20 (Typ.)(CR≥2) |
Display Mode | STN, Normally Black, Transmissive |
Best View on | - |
Response Time | 16/80 (Typ.)(Tr/Td) |
Display Colors | Color 39%NTSC |
Lamp Type | 2 pcsCCFL, 60K hours, Optional |
Frequency | 75Hz |
Touch Screen | Without |
Panel Weight | 540g (Typ.) |
Application | Industrial |
Signal Interface | Parallel Data (1ch, 8-bit), 29 pins Connector |
Input Voltage | 5.0V (Typ.) |
Environment | Operating Temp.: 0 ~ 40 °C ;Storage Temp.: -20 ~ 60 °C |
KCB104VG2BA-A21 10.4 inch 640*480 LCD Screen Display |
KCB104VG2BA-A21 LCD Panel Shipping and Package :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel KCB104VG2BA-A21 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
