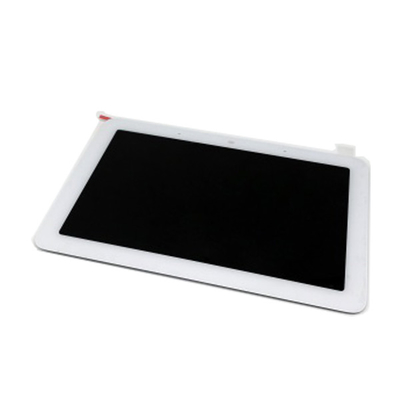

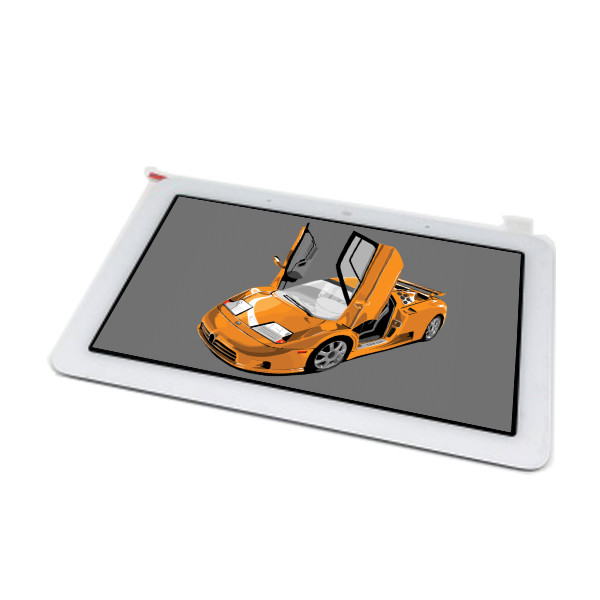

TV070WSQ-NW0 7.0 inch 600*1024 LCD Screen Display

Brand Name:	BOE
Model Number:	TV070WSQ-NW0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TV070WSQ-NW0

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

600(RGB)×1024, WSVGA 170PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

89.28(W)×152.37(H) Mm

Treatment:

Without Polarizer

Outline(mm):

93.28(H)×159.82(V)×0.8(D) Mm

Contrast Ratio:

800:1 (Typ.) (TM)

Application:

Pad & Tablet

Supply Ability:

100000 Unit/Units per Month

Product Description

TV070WSQ-NW0 7.0 inch 600*1024 LCD Screen Display

TV070WSQ-NW0 LCD Panel Product details :

Brand	BOE
Model P/N	TV070WSQ-NW0
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	600(RGB)×1024, WSVGA 170PPI
Pixel Format	RGB Vertical Stripe
Active Area	89.28(W)×152.37(H) mm
Bezel Opening	-
Outline Dim.	93.28(H)×159.82(V)×0.8(D) mm
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Plate Thickness	0.40+0.40 mm
Transmittance	4.9% (Typ.)(with Polarizer)
Support Color	16.7M 50%NTSC
Light Source	No B/L
Weight	-
Designed For	Pad & Tablet
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COG Suggest JD9364A
Interface Type	MIPI (4 data lanes)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -55 ~ 80 °C

TV070WSQ-NW0 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

TV070WSQ-NW0 LCD Panel Shipping and Package :

TV070WSQ-NW0 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

TV070WSQ-NW0 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

TV070WSQ-NW0 LCD Panel FAQ :

Q: How to make payment of TV070WSQ-NW0 ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of TV070WSQ-NW0 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How long will I receive my goods TV070WSQ-NW0 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How long is the warranty ?

A: We offer 90 days warranty .
