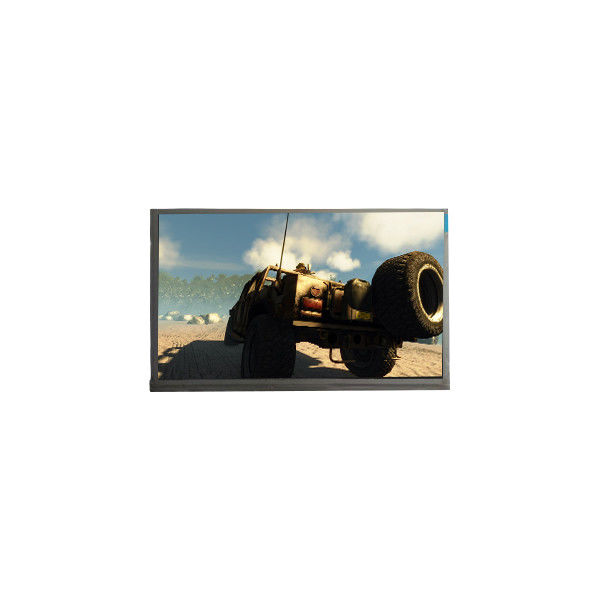

F104A02-6T2 10.4 inch 1200*2000 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F104A02-6T2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F104A02-6T2 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 1200(RGB)×2000 225PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 135.36(W)×225.6(H) Mm |
| Outline Size: | 139.36(W)×233.3(H)×0.4(D) Mm | Luminance: | 0 Cd/m² |
| Contrast Ratio: | 1300 : 1 (Typ.) (TM) | Application: | Pad & Tablet |
Product Description
F104A02-6T2 10.4 inch 1200*2000 LCD Screen Display Panel
F104A02-6T2 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F104A02-6T2 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1200(RGB)×2000 225PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 135.36(W)×225.6(H) mm |
| Bezel Opening | - |
| Outline Size | 139.36(W)×233.3(H)×0.4(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1300 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Glass Thickness | 0.20+0.20 mm |
| Transmissivity | 4.12% (Typ.) |
| Color Depth | 16.7M 66%NTSC |
| Backlight | No B/L |
| Mass | - |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch, I²C |
| Driver IC list | Suggest COG HX83102_E, nt36523 |
| Max. Ratings | Storage Temp.: -25 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
F104A02-6T2 LCD Panel Specification :
Quality Assurance:
Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.
F104A02-6T2 LCD Panel Shipping and Package :
F104A02-6T2 LCD Panel Shipping Information :
Standard Shipping Practices:
We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.
Processing Time:
We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.
Contact Information Requirement:
To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.
Attention – Expedited Shipping Options:
For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.
F104A02-6T2 LCD Panel Return Policy :
Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.
In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.
Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.
F104A02-6T2 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of F104A02-6T2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of F104A02-6T2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of F104A02-6T2 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
Want to Know more details about this product
