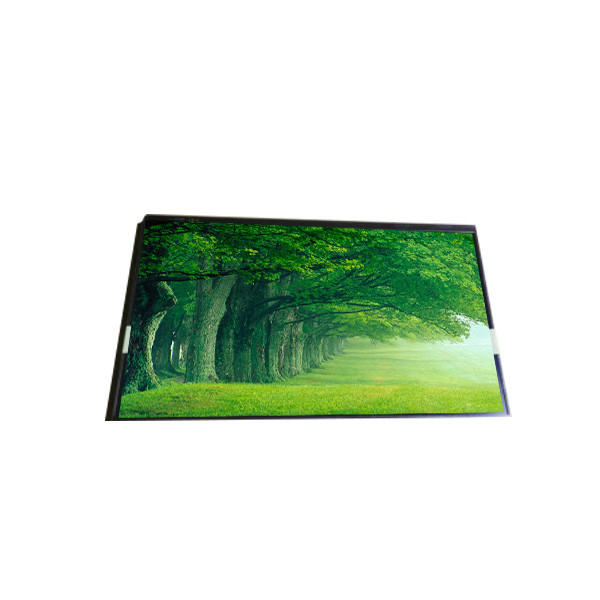

Industrial KDA-070OB-18052S-A 7.0 inch LCD Screen Display Panel

Brand Name:	OPTREX
Model Number:	KDA-070OB-18052S-A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

KDA-070OB-18052S-A

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Bezel Opening:

154.4(W)×93.4(H) Mm

Outline Dim.:

169.8(H)×109.7(V) ×11.3(D) Mm

View Direction:

Symmetry

Application:

Industrial ，Outdoor High Brightness

Supply Ability:

100000 Unit/Units per Month

Product Description

Industrial KDA-070OB-18052S-A 7.0 inch LCD Screen Display Panel

KDA-070OB-18052S-A LCD Panel Product details :

Brand	OPTREX
Model P/N	KDA-070OB-18052S-A
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	154.4(W)×93.4(H) mm
Outline Dim.	169.8(H)×109.7(V) ×11.3(D) mm
Treatment	-
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	750:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	18/12 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AWV, Normally Black, Transmissive
Support Color	262K/16.2M 51% NTSC
Light Source	8S2P WLED , 70K hours , With LED Driver
Weight	-
Designed For	Industrial ,Outdoor High Brightness
Frame Rate	60Hz
Touch Panel	PCAP, Optical Bonding
Interface Type	LVDS (1 ch, 6/8-bit) , 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C

KDA-070OB-18052S-A LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

KDA-070OB-18052S-A LCD Panel Shipping and Package :

KDA-070OB-18052S-A LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

KDA-070OB-18052S-A LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

KDA-070OB-18052S-A LCD Panel FAQ :

Q: How do you ship my goods KDA-070OB-18052S-A ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of KDA-070OB-18052S-A ?

A: 90 days warranty .

Q: How can I trace my order of KDA-070OB-18052S-A ?

A: we will give you tracking number then you can trace your order form website.

Q: Can you give me a discount if I need a large quantity of KDA-070OB-18052S-A ?

A: Of course!If you make a large order, we will give you a discount.
